5.8.2.1.11.  Sort directory

The sequence of the various directories / folders within the tree can be changed.

Proceed as follows:

  1. Select the directory whose subdirectories you want to reorganize and click on the context menu command Sort directory.

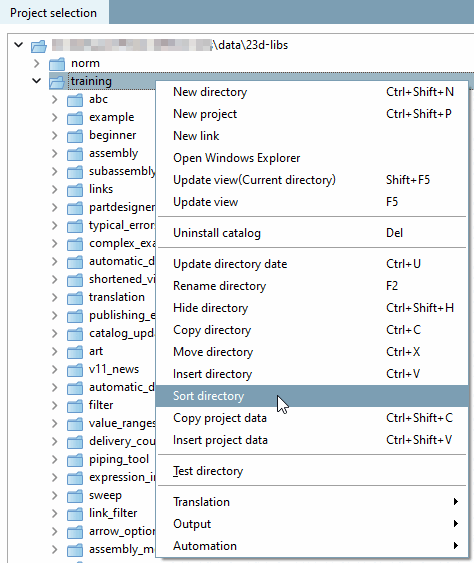

    "training" directory marked

    "training" directory marked

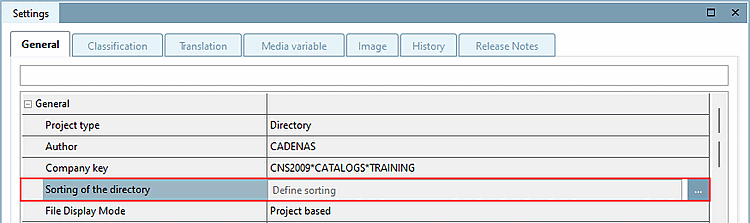

    Alternatively, click on the button with the three dots on the General tabbed page in the Directory sorting [Sorting of the directory] menu item.

    → In both cases, the Sequence dialog box opens. You will see a list of all subdirectories and, if applicable, the projects in the selected directory, each with SVN status and visibility status (hidden=red).

    "Sequence [Sequence]" dialog box with directories and projects

    "Sequence [Sequence]" dialog box with directories and projects

  2. In the respective section, select the desired directory or project whose position you want to move up or down.

  3. Use the up and down arrow keys to change the position.

    Alternatively you can change the position via Drag & Drop.

  4. Confirm with OK and the new sequence is transferred to the PARTproject tree.

  5. Click Save.

[Note]Note

So that this change also becomes active in 3Dfindit / PARTdataManager, please update the display index on the corresponding directory level via the Update index button. This can also be done via PARTadmin, see Section 1.3.3.6.6.2, “Display index” in PARTsolutions Administration - Manual .

[Caution]Caution

If you execute the command at catalog level, this may take hours depending on the number of catalogs installed!

[Note]Note

The sort order can also be changed for catalogs (not for subdirectories) in PARTadmin. Advantage: The index does not have to be updated. See Section 1.3.3.6.6.12, “ Sort catalogs ” in PARTsolutions Administration - Manual → Sort catalogs.
