1.6.2.  "Select view to be transferred..." dialog box

[Note]Note

If the Select view to be transferred. [Choose view to pass...].. dialog box is open, the selection made there is always transferred (even if something else is selected in the 2D view dialog box). dialog box is open, the selection made there is always transferred (even if something else is selected in the 2D view dialog box).

Further information on this can be found on the "Transfer to CAD" tab page.

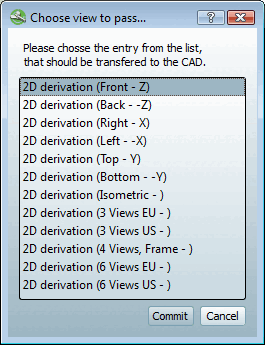

In the Select view to transfer [Choose view to pass...]... dialog box, select the desired view and then click Transfer [Commit].

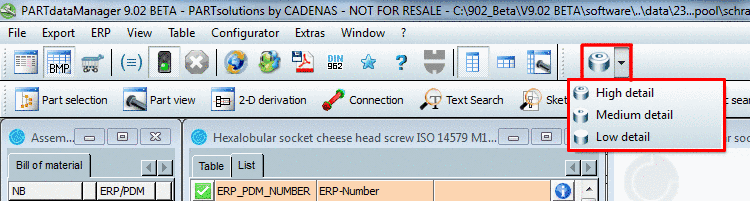

Choose view to pass...

Choose view to pass...

The following views are available in the Select view to be transferred. [Choose view to pass...].. dialog box. dialog box:

  • 2D derivation (front - Z)

  • 2D derivation (rear - - Z)

  • 2D derivation (right - X)

  • 2D derivation (left - - X)

  • 2D derivation (Top - Y)

  • 2D derivation (Bottom - - Y)

  • 2D derivation (isometric)

  • 2D derivation (3 views EU-)

  • 2D derivation (3 views US)

  • 2D derivation (4 views, frame)

  • 2D derivation (6 views EU-)

  • 2D derivation (6 views US)

  • 2D derivation (frame ANSI -)

  • 2D derivation (frame ANSI A - A)

  • 2D derivation (frame ANSI B - B)

  • 2D derivation (ANSI C - C frame)

  • 2D derivation (ANSI D - D frame)

  • 2D derivation (frame ANSI E - E)

  • 2D derivation (ANSI (BOM) frame)

  • 2D derivation (frame ANSI A (BOM) - A)

  • 2D derivation (frame ANSI B (BOM) - B)

  • 2D derivation (frame ANSI C (BOM) - C)

  • 2D derivation (frame ANSI D (BOM) - D)

  • 2D derivation (frame ANSI E (BOM) - E)

  • 2D derivation (DIN - frame)

  • 2D derivation (DIN A0 - A0 frame)

  • 2D derivation (frame DIN A1 - A1)

  • 2D derivation (frame DIN A2 - A2)

  • 2D derivation (frame DIN A3 - A3)

  • 2D derivation (frame DIN A4 - A4)

  • 2D derivation (frame DIN (BOM) - )

  • 2D derivation (frame DIN A0 (BOM) - A0)

  • 2D derivation (frame DIN A1 (BOM) - A1)

  • 2D derivation (frame DIN A2 (BOM) - A2)

  • 2D derivation (frame DIN A3 (BOM) - A3)

  • 2D derivation (frame DIN A4 (BOM) - A4)

  • Technical views

    (if available)

Click on the button Transfer to CAD.

-> The view switches to the CAD system.

[Note]Note

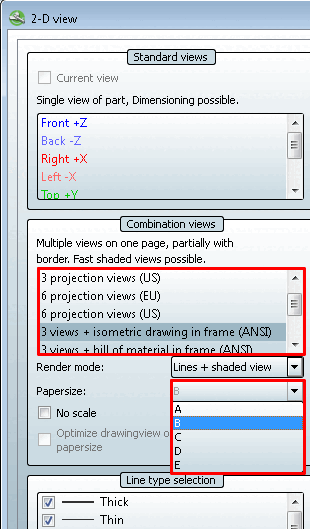

The selection options correspond to those in the 2D view dialog box.

There you can combine the frame selection with the paper format selection. Thus the selection list appears shorter, however in regards to content it is identical.

The different views are explained in detail under Section 1.6.1, “ 2D view" dialog box ”.
