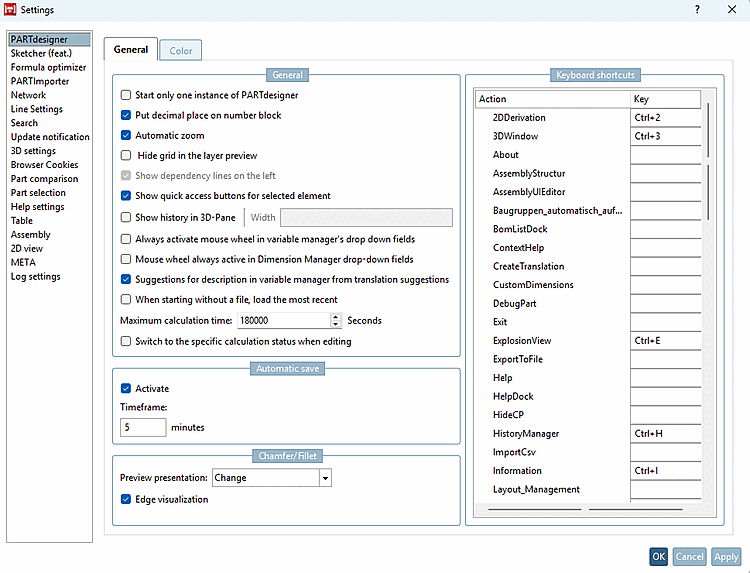

Use feature-based sketcher for new sketches [Use feature based Sketcher for new sketches]: Setting no longer relevant.
Start only one instance of the Designer [Start only one instance of PARTdesigner]: If this option is activated, several PARTdesigner sessions cannot be started at the same time.
Set decimal point to numeric keypad [Put decimal place on number block]: This option changes the decimal point key on your keyboard to a period, i.e. you press the decimal point key but write a period. This is an advantage because the notation of decimal numbers in PARTdesigner always requires dots (3 . 5mm) instead of commas (3 . 5mm).
As soon as the Activate option is selected, the geometry is automatically saved at adjustable intervals. Enter the desired interval [Timeframe] period in minutes.
Variable manager colors [Variable Manager colors]:
The colors defined here are displayed in the variable manager under Storage location (compare).
