5.12.3.2.3.  Classification (By Countries)

The functionality described in the following enables a manual adding of address data.

Editing a large number of manufacturer address data directly in PARTproject is tedious. It is better to use the Import [Import address information] address data function. See Section 5.8.2.1.16.21, “ Manage address data ” address data.

  1. Select the categories.prj in the catalog root directory or possibly also a project file if the product is only available in specific countries.

  2. Select the Classification tab.

  3. Select the Classification By Countries.

  4. Select the required classes (countries) under Classification system [Class system].

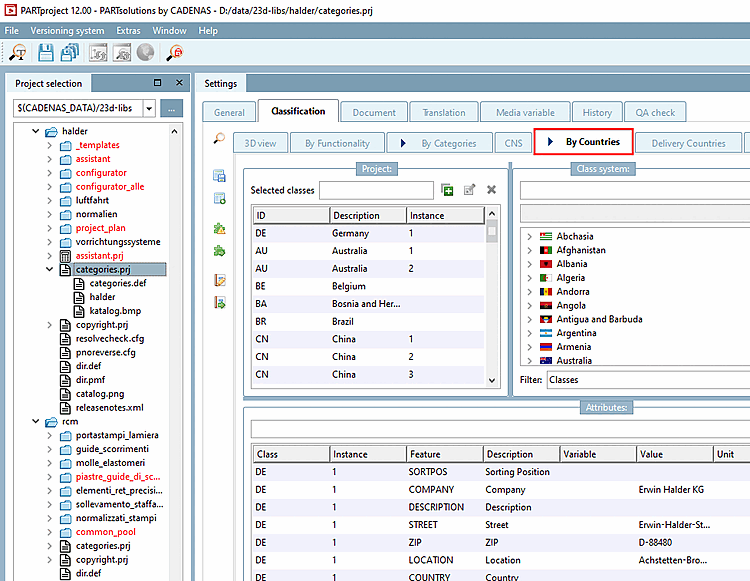

    Classification (By Categories)

    Classification (By Categories)

    [Note]Note

    If a country has several addresses, be sure to enter the instance [Instance] with a consecutive number.

  5. Fill in the individual characteristics in the Characteristics dialog area.
