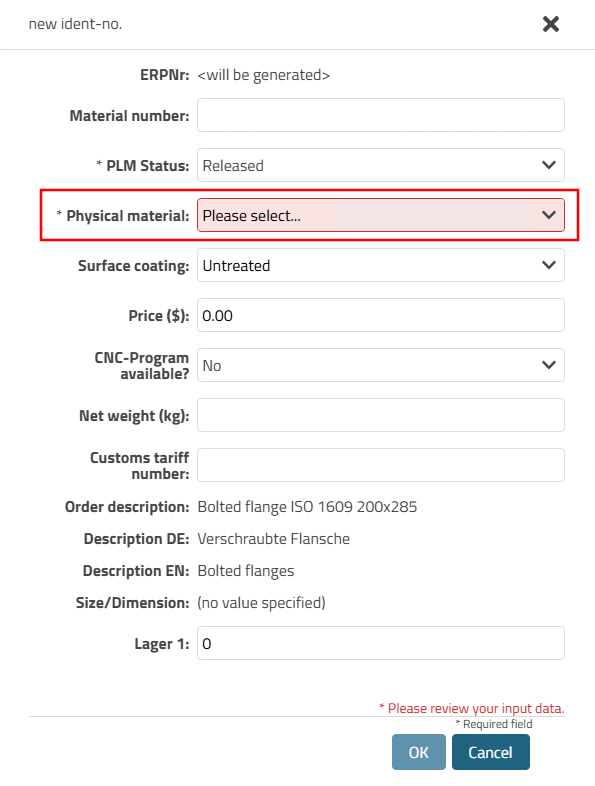

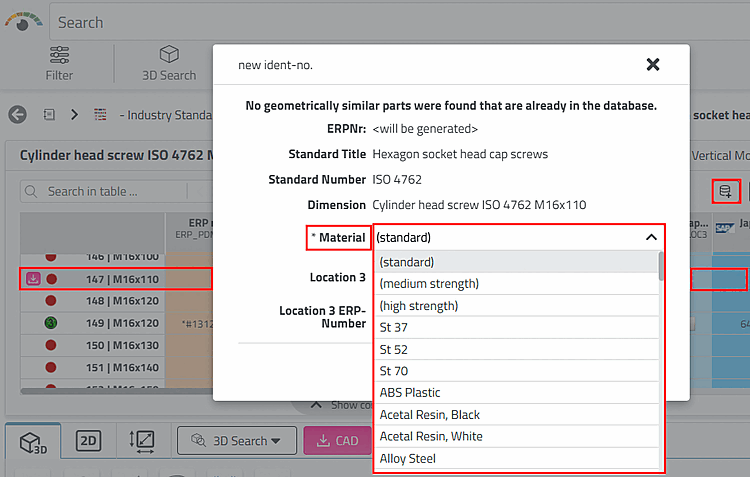

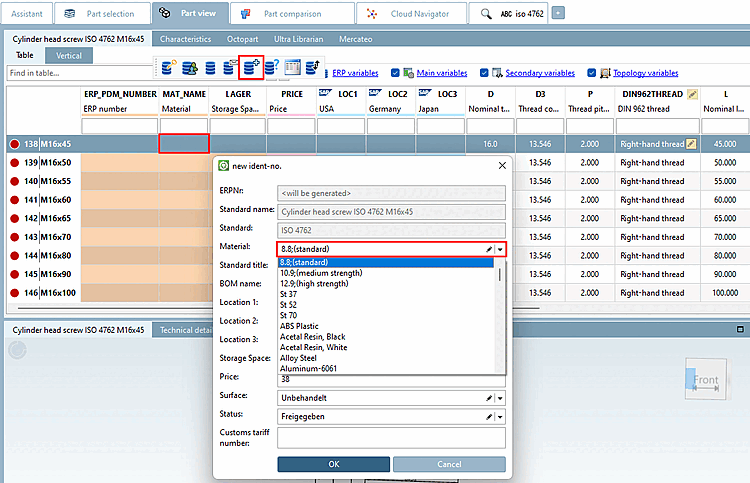

In the configuration file material_assign.cfg, you set which materials are to be displayed in the PARTdataManager in the New Ident Number [new ident-no.] dialog box.

During the export to the CAD system the PARTsolutions material is mapped onto the CAD system material so that the physical properties can be calculated in the CAD system.

Further information

Information on transferring the material attribute to CAD can be found under Section 2.2.9, “Material mapping ”.

Information on including the material in the file name can be found under Section 2.2.7.2, “File name: set generation options ("FileName" key) ”. By default, existing material information is included in the file name.
