3.1.13.4.7.  Analysis management - Call up created analyses again later
Marking of directories, projects

Analyses are marked by a special icon in the index tree on directory and project level :

[Note]Note

Analyses and reports are marked by the same icon.

Call up analyses

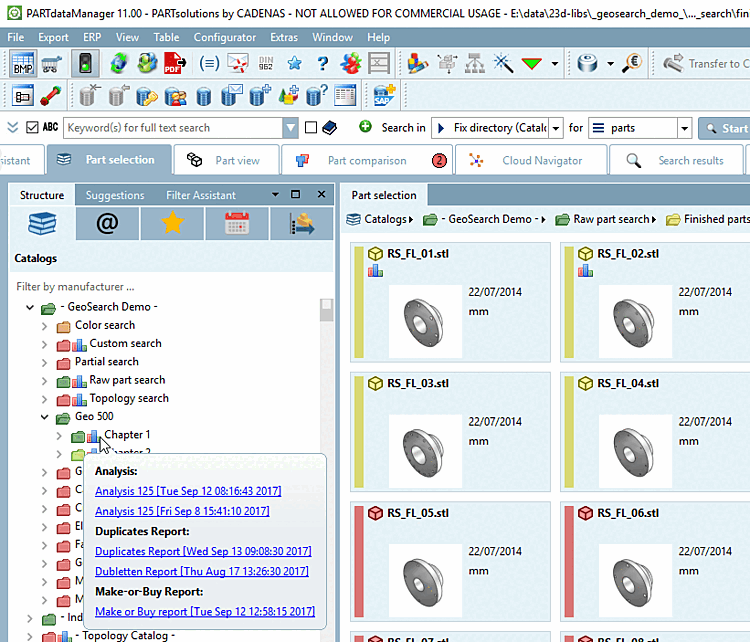

  • If the mouse is moved over the icon icon, brief information appears with the available analyses.

    Click on the icon icon opens the relevant analysis. If several are available, the Analysis management [Manage analyses] dialog box opens to select the desired analysis.

  • Context menu of any directory -> Analysis -> Analysis management [Analyses management...]..

    -> The Analysis management [Manage analyses] dialog box opens.

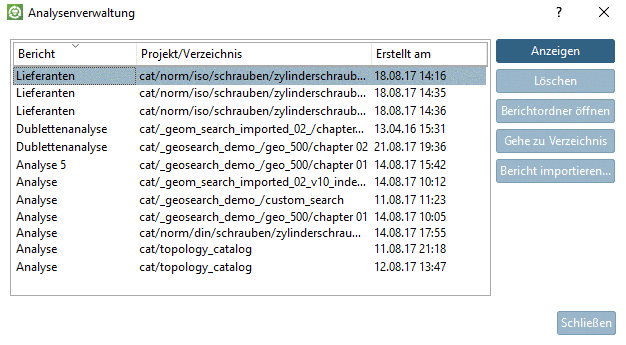

Analysis management [Manage analyses] dialog box

Select the desired analysis.

Afterwards the following functions are available:

Button Function
Display The analysis is opened.
Delete The analysis is deleted.
Open report folder

The corresponding directory under $CADENAS_DATA\shared\reports\Analyses\ is opened.

Select index directory The directory where the analysis is based on, is marked in the index tree.
Import report...

Communicate cross-departmental. Simply import other's reports.

An Explorer window opens. Select the report to be imported.

The function is currently only available for reports and not for analyses.

Close The dialog box is closed.
