The 2D derivations (front [Front], back [Back], right [Right], left [Left], top [Top], bottom [Bottom] ) are generated automatically and are therefore automatically available in the PARTdataManager available.

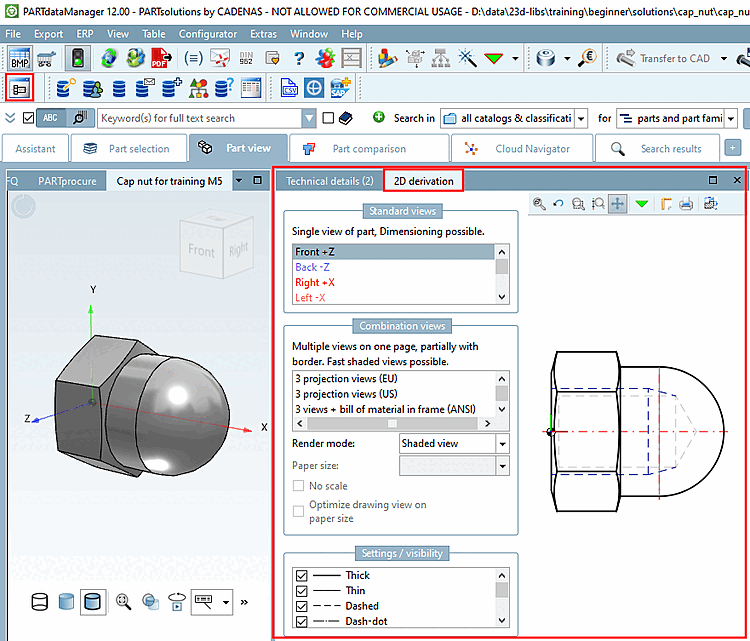

To display the 2D derivations in the PARTdataManager window, click on the 2D derivation button button and then click on the desired view in the 2D derivation docking window.

The standard 2D derivations can be modified in different ways.

You can find detailed information on this under Section 5.10, “Adjust 2D derivations ” in eCATALOG 3Dfindit.
