2.8. CADENAS/3Dfindit Variables (Basic)

Available 3Dfindit variables:

  • $CADENAS (software)

  • $CADENAS_DATA (catalog path)

  • $CADENAS_CATALOG (by default) loaded catalogues)

  • $CADENAS_LANGUAGE

  • $CADENAS_SETUP (including scripts, configuration files)

  • $CADENAS_SITESETUP (see Section 1.7.6, “ $CADENAS_SITESETUP” in ENTERPRISE 3Dfindit (Professional) - Administration )

  • $CADENAS_USER

  • $CADENAS_DEFAULTUSER=$CADENAS_SETUP\user\default_user

    Example: When the USER directory is deleted, the values are reloaded from the DEFAULTUSER directory.

  • $CADENAS_LICENSE

  • $CADENAS_PROGHELP (see Section 1.4.4, “ Help source ” in ENTERPRISE 3Dfindit (Professional) - Administration )

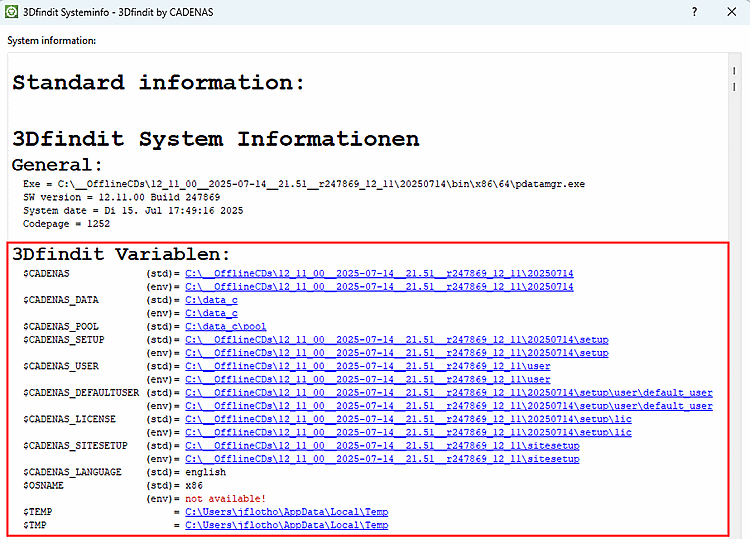

Open the 3Dfindit Systeminfo - 3Dfindit by CADENAS dialog window via the Help menu [Help] -> Systeminfo/Support [System info/Support], where you will find the 3Dfindit variables with the current path. You can quickly access the corresponding directories via the variable links. However, you must have the necessary administration rights.
