2.8.2.2.  Insert rectangle

  1. Click on the Insert rectangle button.

  2. Clicking top right, outside the hexagonal area (positive x/y area), set the starting point of the rectangle.

  3. Drag out the rectangle diagonally, until it encloses the hexagon and fix it with a mouse click again.

  4. Fill in the fields in the Change parameters [Change parameter] dialog box as shown in the illustration.

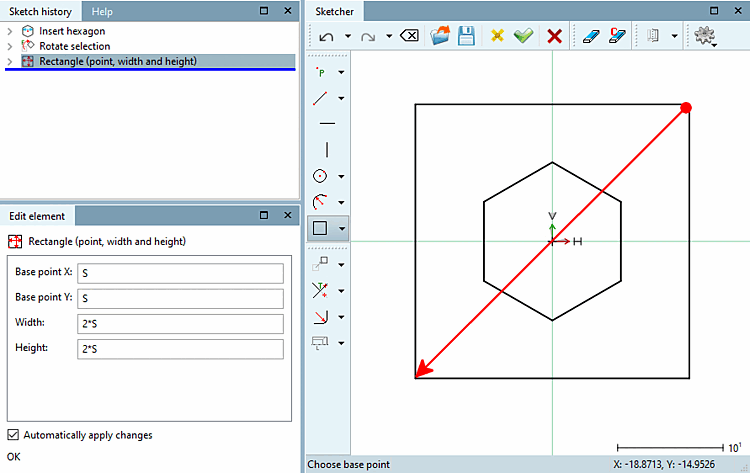

    Determine starting point and drag the rectangle

    Determine starting point and drag the rectangle
