1.3.4.3.2.12. Number search for a range

If you are searching for a range of numbers and the search is actually to be carried out as a number search, you must enclose the search string in square brackets, e.g. D=[10-14]. If you omit the brackets, a textual search will be carried out.

Examples:

  • D=[10-12]
[10-20]

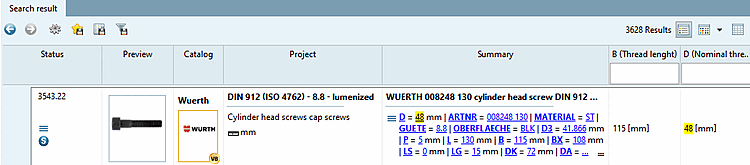

    PARTdataManager: Set range in brackets

    PARTdataManager: Set range in brackets

    3Dfindit: Set range in brackets

    3Dfindit: Set range in brackets

  • Square brackets are already used in the number search with units, so the two options can also be combined.

    D=[1-2 inch]

    [Note]Note

    There must be a space between the number and the unit.

    PARTdataManager: Result in Inch

    PARTdataManager: Result in Inch

    PARTdataManager: Result in mm (a conversion to mm is automatically performed, so that also here appropriate result will be found)

    PARTdataManager: Result in mm (a conversion to mm is automatically performed, so that also here appropriate result will be found)

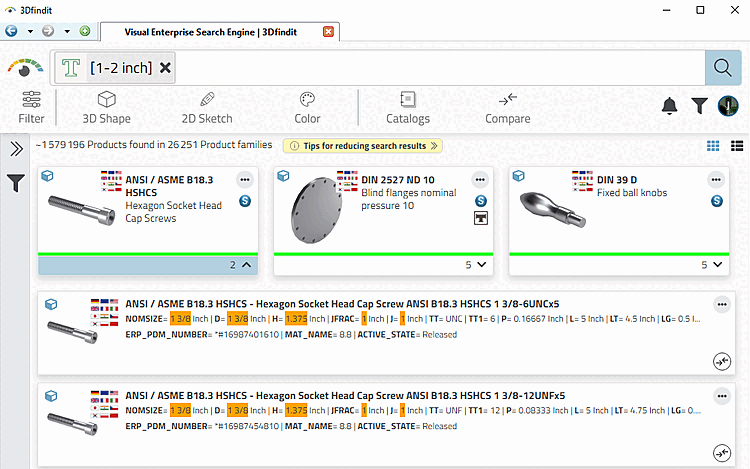

    3Dfindit: Result in inch

    3Dfindit: Result in inch

    PARTdataManager: Result in mm (a conversion to mm is automatically performed, so that also here appropriate results will be found)

    PARTdataManager: Result in mm (a conversion to mm is automatically performed, so that also here appropriate results will be found)

  • More examples:

    [10-20 mm]
30[mm]
[10 mm]
