Make sure that the class CNS_CP|4|5 Elektro Alignment Coordsys is set exactly once on the part to be classified.

To do this, select the project to be edited under Project selection and then click under Edit project -> Classification (CNS) at ....

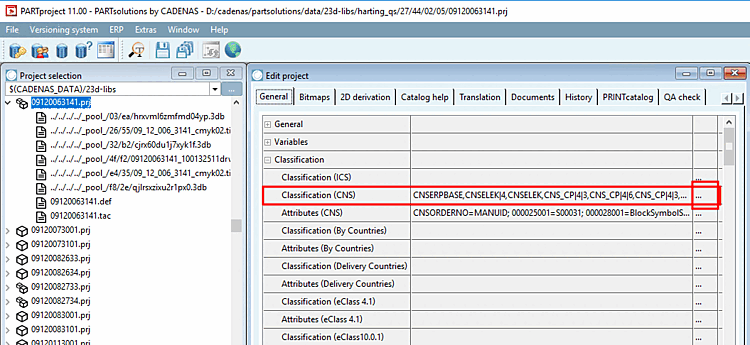

Open dialog for class selection

-> The Classification dialog box opens.

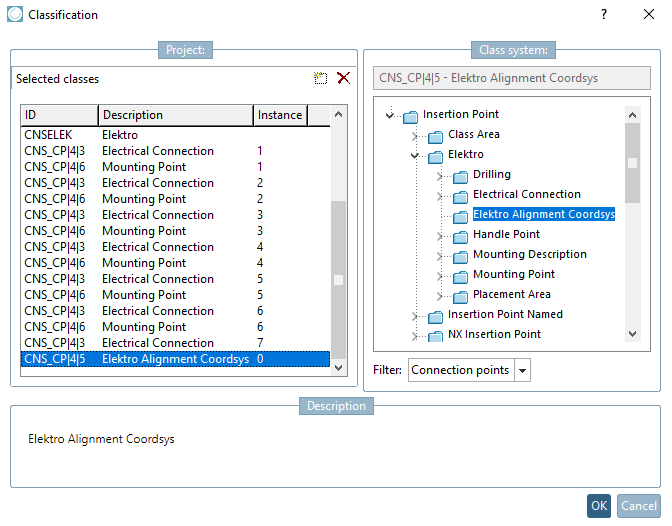

Electro Alignment Coordsys

Under Selected classes, check whether the Elektro Alignment Coordsys class is available.

If not already available, select it in the Class system dialog area under Insertion point -> Electrical -> Electrical Alignment Coordsys by double-clicking.

Select the .3db file under Project selection.

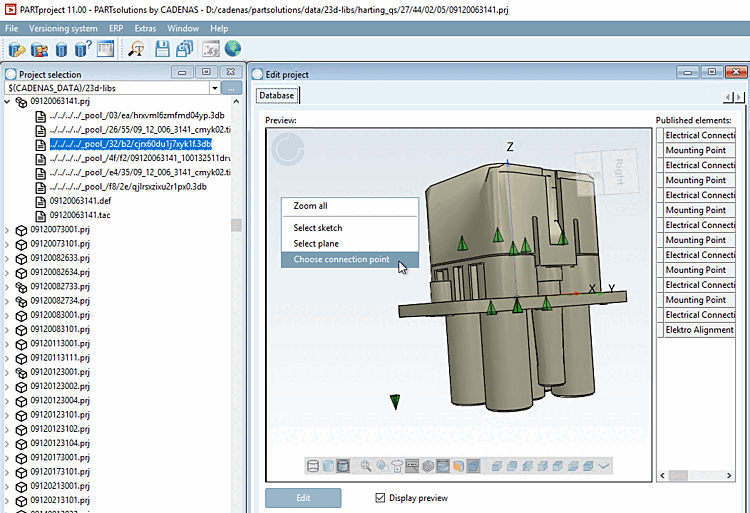

Click on Select connection point [Choose connection point] in the context menu under Preview.

-> The same-named dialog box is opened.

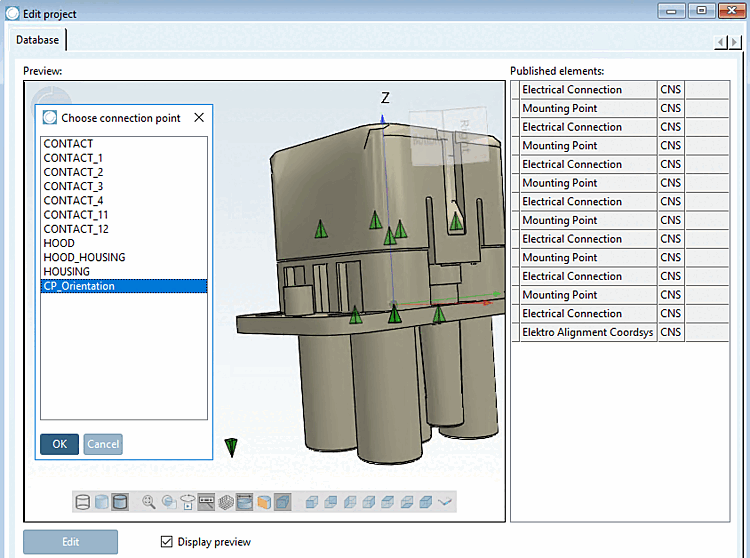

Select the desired connection point [Connection point] and confirm with OK.

-> The list of classes and features is displayed below the preview [Preview].

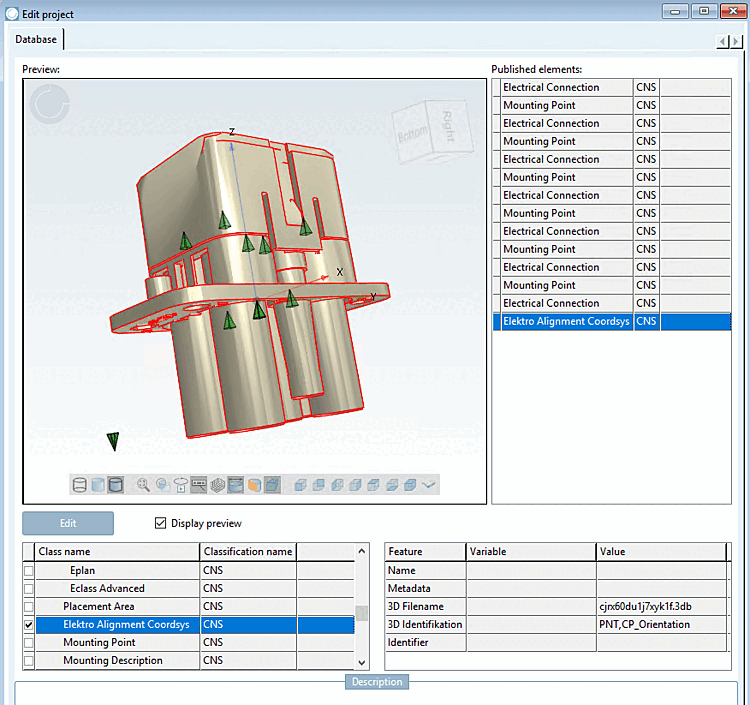

Select the Elektro Alignment Coordsys class and activate the checkbox at the beginning of the line.

-> The item Electro Alignment Coordsys is now displayed under Published elements.

-> Right below the respective attributes are displayed.

3D identification

Optional for checking: Select the project to be edited under Project selection and then click under Edit project -> Characteristics (CNS) at ....

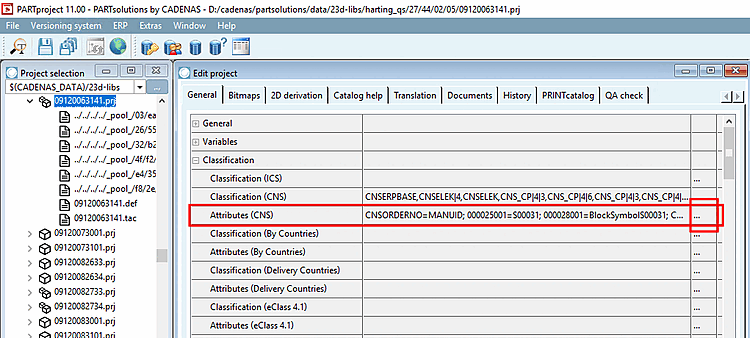

Open the dialog for the specification of class variables

-> The Class variables dialog box opens.

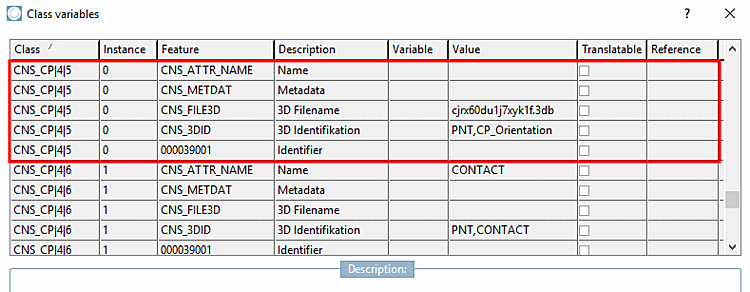

Dialog for the specification of class variables

the 3D file name and 3D identification are also automatically displayed here.

Update the display index and open the part in PARTdataManager.

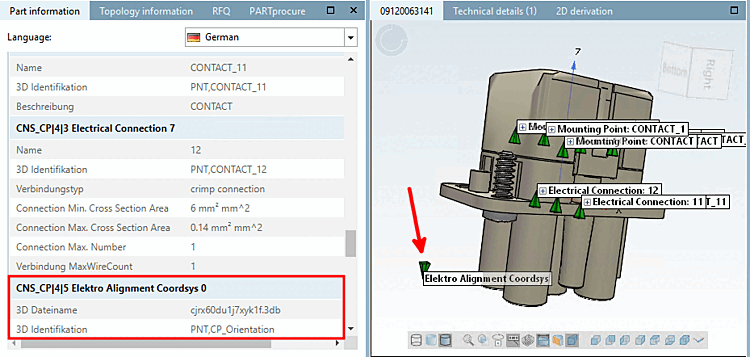

The classified connection point [Connection point] is displayed in the PARTdataManager in the part information [Part information] docking window as CNS_CP|4|5 Elektro Alignment Coordsys.
