3.1.2. Basic workflow for "direct" PDM linking

When exporting a part from PARTsolutions into a CAD system a query is made whether the part already exists in PDM/PLM:

  • If Yes, the part is automatically fetched from PDM/PLM and opened in CAD system.

  • If No, the part is generated in CAD and then checked in into PDM from there.

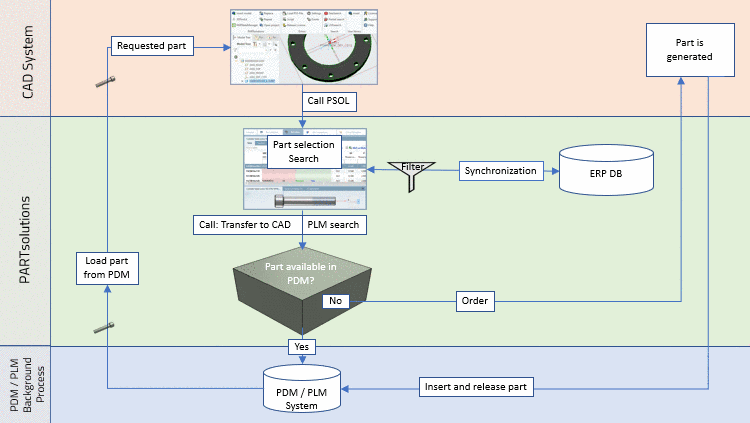

Structural overview of CAD - PARTsolutions - PDM - ERP linking.

Structural overview of CAD - PARTsolutions - PDM - ERP linking.
