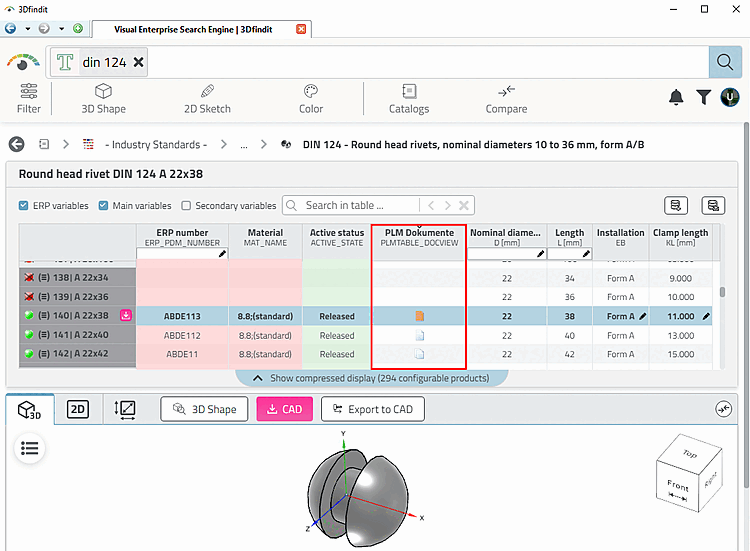

In the characteristic attribute table, a separate PLMTABLE_DOCVIEW column can be used to indicate for each characteristic (row) whether a CAD document exists (or several) and whether it exists with the currently set values.

This feature is now also available for 3Dfindit.

Background:

The ERP_PDM_NUMBER column indicates whether a part is managed. The article number is then displayed in this column. This information is usually sufficient for design purposes. However, for administration, for example, it may also be of interest to know which parts have actually been exported or whether a CAD document exists for the part. The ERP_PDM_NUMBER column does not say anything about this. This information is provided by the PLMTABLE_DOCVIEW column using corresponding icons.

/	No icon: There is no document in the PDM system for the line in question. This means that the PLMTABLE2 table does not contain any entries for the corresponding line.
	White, single document symbol: There is exactly one CAD document available for the respective row. (PLMTABLE2 contains exactly ONE entry.)
	White, multi-document symbol: There are several CAD documents for the line in question. (PLMTABLE2 contains several documents.) Possible reasons are: Different installation positions (e.g. for springs, rivets, seals) Assemblies: Documents of assembly and children (e.g. bearing box and balls) Documents of different CAD systems
	Orange, single document symbol: A document is available, but the current setting of a value range field differs.

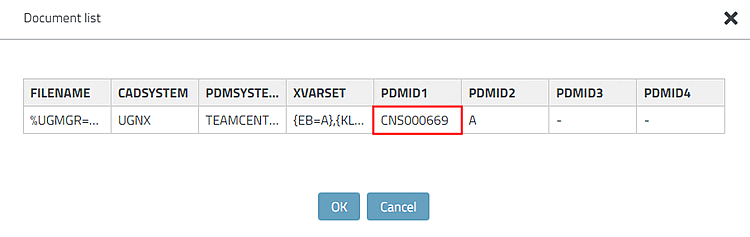

Clicking on the icon opens the Document list dialog box, which shows the PDMID, which in turn can be used to quickly find the relevant document in the PDM.

Example:

Parts such as springs, rivets or seals have value range fields that are created as functional characteristics. Even if these parts are exported with different functional values, they are only managed once (and only exist once in the warehouse). Explanations of the various characteristic types can be found under Section 3.1.7.1, “Determine characteristic in "Table" view ” in PARTsolutions user manual.

Clamping length 20mm

Clamping length 51mm

You can find details on this under Section 3.2.9, “Show CAD documents (PDM-ID) in 3Dfindit / PARTdataManager ” in PARTsolutions Administration - Manual .
