4.20.  Further settings in erpcustom.cfg
4.20.1.  Load additional scripts - erpcustom.cfg -> Block [LOAD]
Prev  Next

4.20.1.  Load additional scripts - erpcustom.cfg -> Block [LOAD]

Optionally, activate additional functionality for ERP.

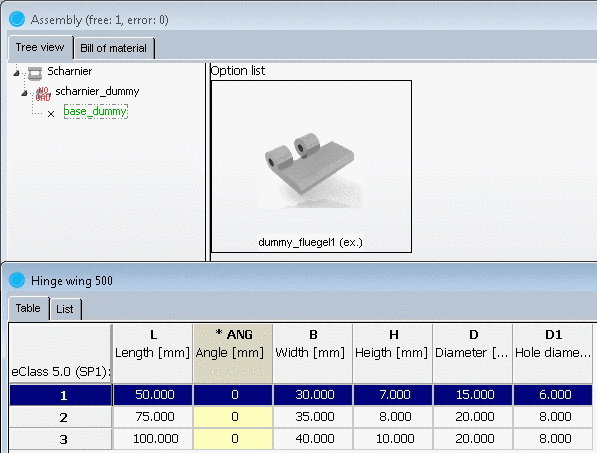

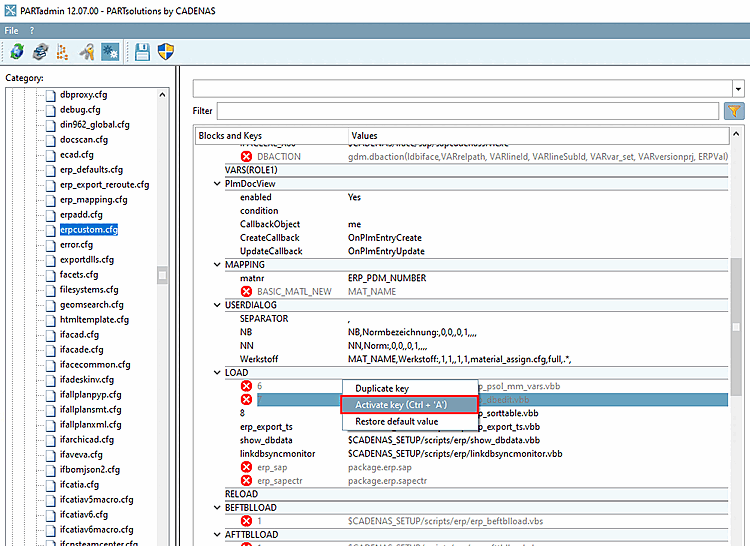

PARTadmin -> erpcustom.cfg -> LOAD

PARTadmin -> erpcustom.cfg -> LOAD

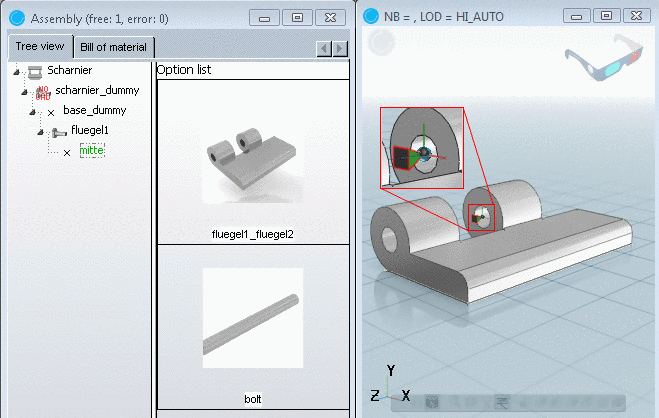

PARTdataManager toolbar "LinkDatabase"

PARTdataManager toolbar "LinkDatabase"


1=$CADENAS_SETUP/scripts/erp/
erp_displaymat.vbb
Display material master in SAP

2=$CADENAS_SETUP/scripts/erp/
erp_searchmat.vbb
Search SAP material number in SAP

3=$CADENAS_SETUP/scripts/erp/
erp_mapping.vbb
Required for the SAP-MM connection

4=$CADENAS_SETUP/scripts/erp/
sap_base.vbb
Required for the SAP-MM connection

5=$CADENAS_SETUP/scripts/erp/
erp_asmtables.vbb


6=$CADENAS_SETUP/scripts/erp/
erp_psol_mm_vars.vbb

Add data record to the link database (variant) [Add dataset to link database (variant)] (PARTdataManager)

(If the key does not exist please add it with incremented number.)

So see Section 4.8, “ERP toolbar and menu ”-> item "Add data record to link database (variant) [Add dataset to link database (variant)] ".

In order to open the SAP material master the following key is required in addition.

  • KEY 4=$CADENAS_SETUP/scripts/erp/erp_sap_mm.vbs


7=$CADENAS_SETUP/scripts/erp/
erp_dbedit.vbb

Edit/delete data record [Edit/delete dataset] Assign new material number, SQL query (PARTdataManager)


erp_export_ts=$CADENAS_SETUP/scripts/
erp/erp_export_ts.vbb

Directly after clicking the export button an ERP_PDM_NUMBER is automatically created and the new line is saved in the link database.

The entry is immediately visible in the PARTdataManager visible.

Via $CADENAS_SETUP/erpcustom.cfg -> block [dialogOnExport] you can control whether the process should run silently, without dialog or with dialog for material assignment.

See Section 4.12.1.2.3, “ Create ERP number directly on export ”.


show_dbdata=$CADENAS_SETUP/scripts/
erp/show_dbdata.vbb
Shows the ERP columns among each other in a separate info dialog (clearer depiction)
