4.16.1.  Keep original row / plinkcommon.cfg -> Block [PARTdataManager] -> Key "KeepOrgRow"

[PARTdataManager]
KeepOrgRow=0 (Wert 0 [default] oder 1)

The key controls if the original row shall be displayed further on after the creation of an ERP number.

  • KeepOrgRow=0 (default)

    For the initial creation of an ERP number the original row is filled.

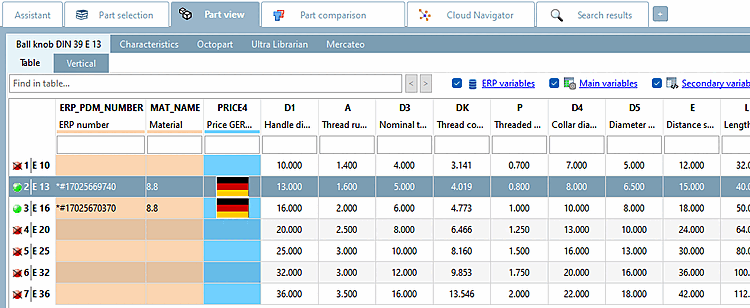

    KeepOrgRow=0 (Default)

    KeepOrgRow=0 (Default)

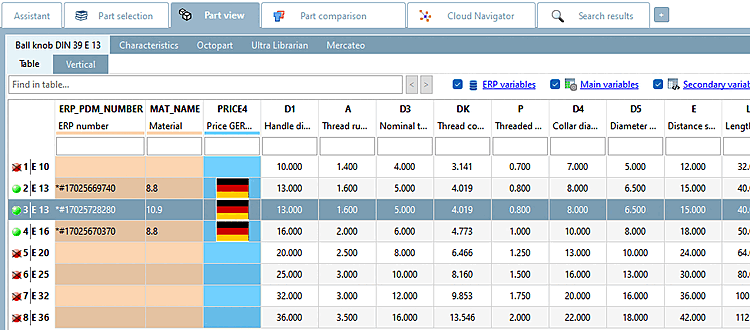

    If another row shall be created with another material, for example, proceed as follows:

    1. Select the existing row (with ERP number).

      -> The New Ident Number [new ident-no.] dialog box opens.

    2. Select a different material under Material.

    3. Confirm with OK.

      -> A new row with the new material is created.

      [Note]Note

      If the project contains value range fields (of the type geometry characteristic [Geometry attribute] such as right-hand or left-hand thread) or if a variant is created, the original row is retained even if KeepOrgRow=0! This allows you to create additional rows with other characteristics.

  • If KeepOrgRow is set to the value 1, a new dataset is created in any case and the original row remains visible.

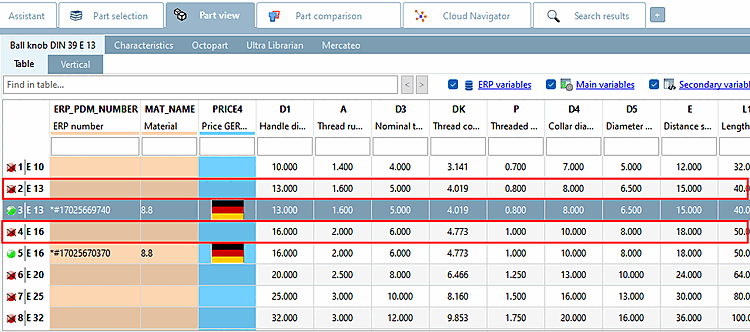

    KeepOrgRow=1

    KeepOrgRow=1

    [Note]Note

    In order to create new rows (for example with other materials) you can either use the original row or a row with existing number.
