3.3.2.2.1. Add PSOL Queries in TC

[Note]Note

Only to be done at the customer's site!

The requests already exist on CADENAS servers.

This page is for information purposes only when installing at a new client.

PARTsolutions sends requests to Teamcenter, for example to retrieve a PART in the PDM.

These requests are processed by Teamcenter using scripts. These scripts must be placed on the Teamcenter server.

  1. Start Teamcenter.

  2. Go to the Query Builder.

  3. Import all standard scripts from CADENAS.

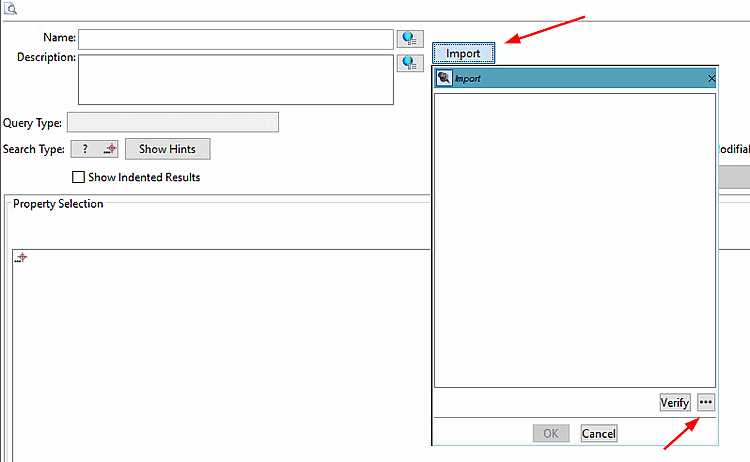

    Click on Import and select a file by clicking on ....

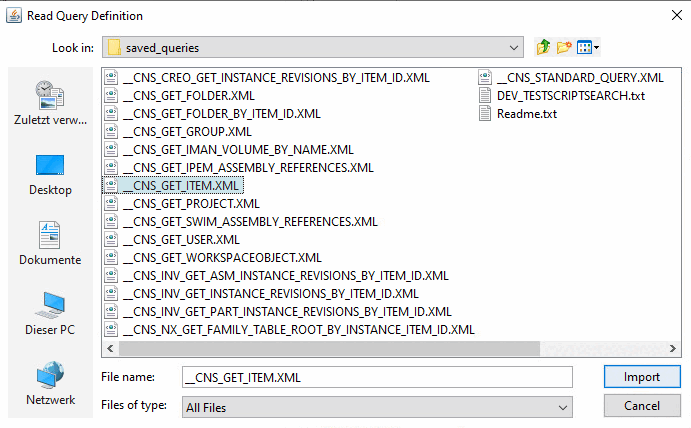

    You can find all query scripts in the PARTsolutions "software" folder: $CADENAS\iface\plm\teamcenter\saved_queries\

    Select the desired file and click Import.

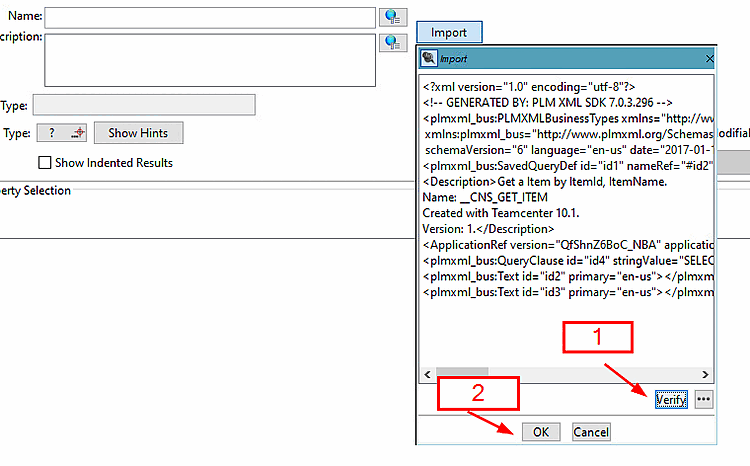

  4. Verify (1) the script and click OK (2).

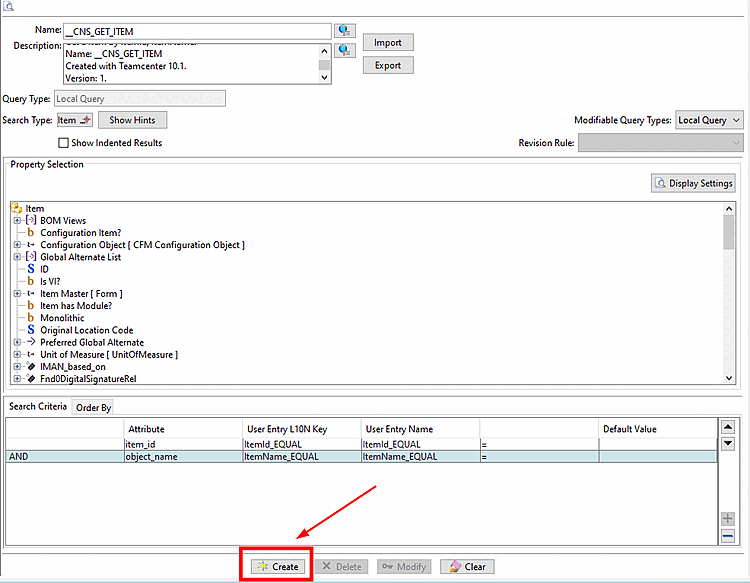

  5. Click Create and the script will be inserted in Teamcenter's "Query Builder".

    Create

    Create

    Query Builder: Result

    Query Builder: Result
