In the current state the right table does not react on changes in the value range fields on the left. So that means the correct row is not selected automatically.

To ensure that correct assignments are available, execute the function Assign resolved value ranges [Map resolved value ranges] function...

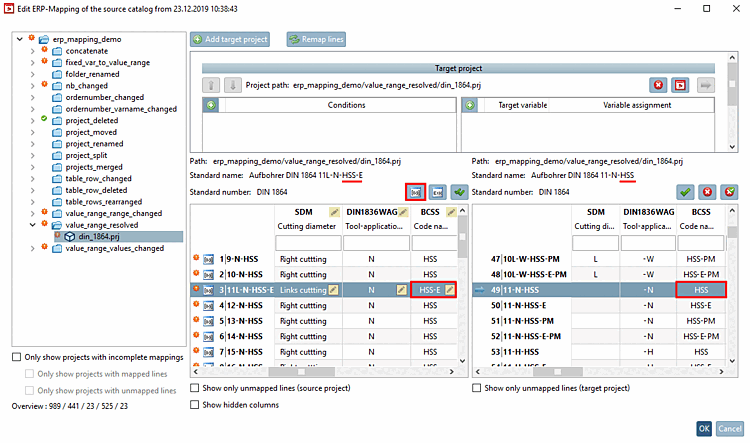

Wrong row selected

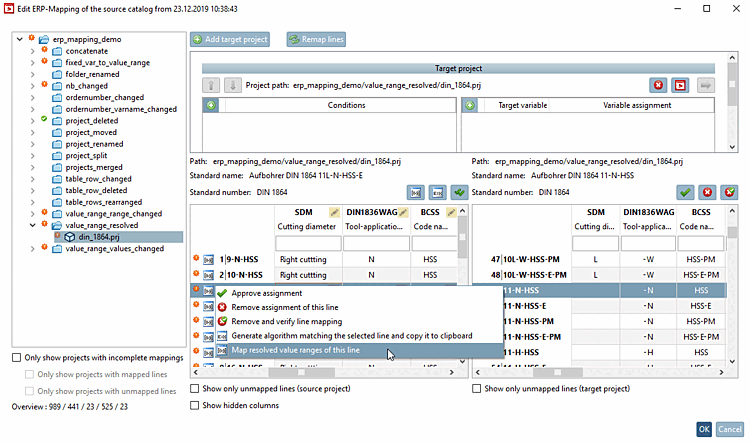

... or on the context menu command Assign resolved value ranges for this row to [Map resolved value ranges of this line] a single row.

-> The Select value range variables dialog box opens, which displays checkboxes for all value range variables.

Activate the checkboxes for which the value range has been resolved and confirm by clicking OK.

Now click on the Assign resolved value ranges [Map resolved value ranges] icon in a row.

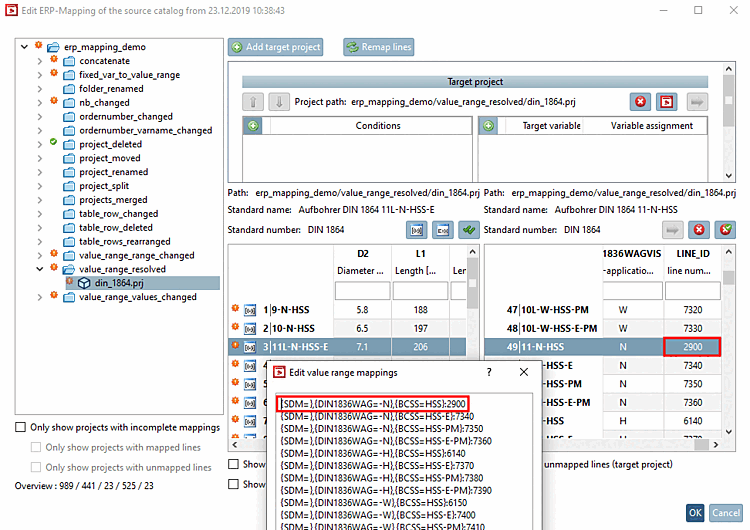

-> The Edit value range assignments [Edit value range mappings] dialog box now opens with a list of all value combinations (the individual values separated by semicolons). At the end of each line is the LINE_ID separated by a colon.

The LINE_ID can also be found in the right-hand table as the last column.

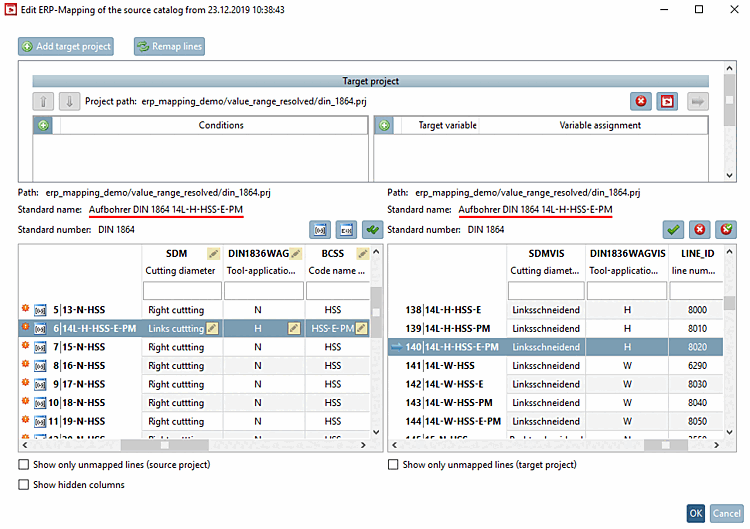

Now when changing the values of value range variables in the left table, in the right table, the correct row is automatically displayed.

If all assignments are correct, click on Confirm all assignments [Verify all mappings] .
