2.3.4.2.10.  Key "COLOR_FEATURES_00"

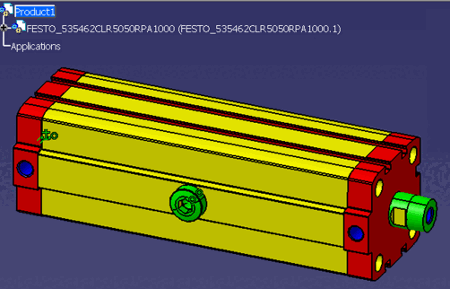

Specify a color for different kind of features.

Examples of COLOR_FEATURES flag usage:

COLOR_FEATURES_01=thread=131,170,214
COLOR_FEATURES_02=hole=0,0,255
COLOR_FEATURES_03=pad=255,0,0
COLOR_FEATURES_04=shaft=0,255,0
COLOR_FEATURES_05=groove=255,255,0
COLOR_FEATURES_06=pocket=255,255,0
COLOR_FEATURES_07=pattern=255,0,255
COLOR_FEATURES_08=sweep=0,255,255
COLOR_FEATURES_09=draft=255,0,0
