5.12.7.3.  Published elements - Select sketch

Right-click in the 3D view to open the context menu.

To classify axes, points, etc., select Select sketch.

-> The Select sketch dialog box appears.

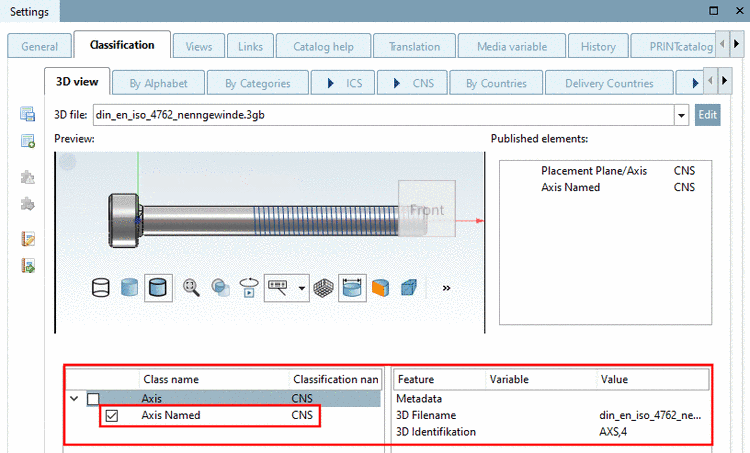

If you want to classify an axis, for example, select the corresponding sketch (here in the example "Axis: Sketch 1").

Confirm with OK.

-> The editing dialog is opened.

The process complies with the one described under Section 5.12.8, “ Classify standard parts for placement dialog ”.
