7.9.3.15.4.  Attributes -> Insert hat ching

Attributes " toolbar -> Hatching

Attributes " toolbar -> Hatching

[Note]Note

Only available in drawing mode [Drawing].

Insert hatch

  1. Select the area to be hatched by holding down the Shift key and mouse button and drawing a frame around it.

  2. Click on the button.

  3. In the Edit element window, set the angle [Angle] (the value 0 stands for 45°!) and the grid width [Grid size] (distance between the hatching lines).

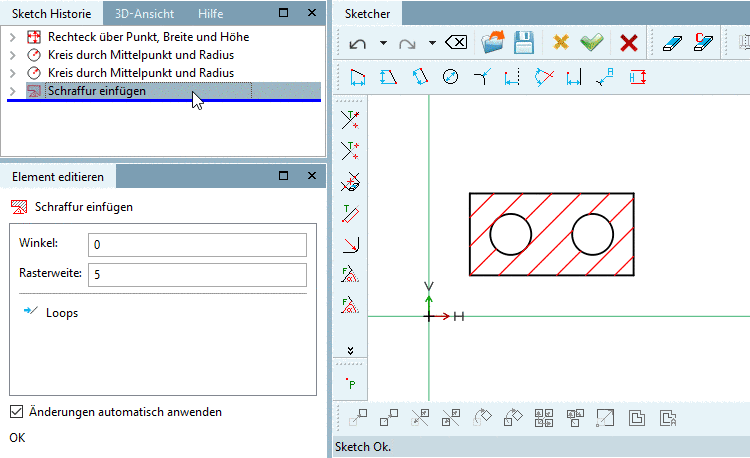

Part with hatch

Part with hatch

[Note]Note

Only closed elements can be hatched .
