5.12.12.4.3. Edit attributes

[Note]Note

The Browse button ... in the associated Characteristics [Attributes] <name> field only becomes active if a classification has already been assigned.

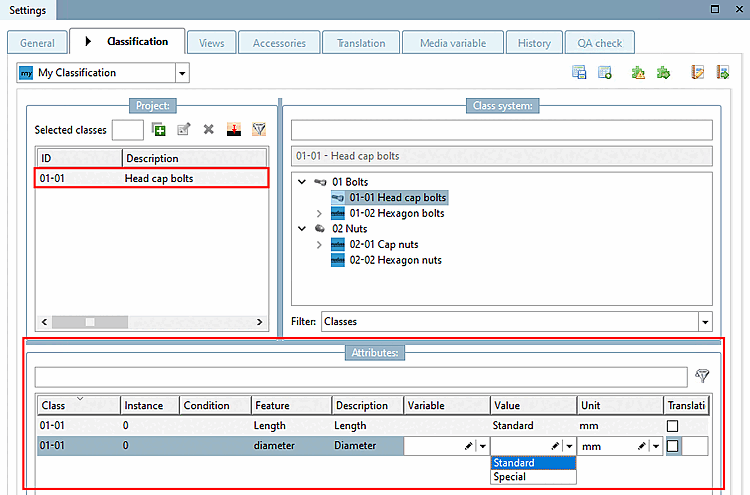

General dialog page -> Characteristics (myclass1)

General dialog page -> Characteristics (myclass1)

  1. Select the project file of the part, which you want to assign an attribute.

  2. Click on Browse ... in the Characteristics [Attributes] (myclass1) field.

    -> The Class variables dialog box opens and the available characteristics are displayed.

    Dialog box: Class variables [Class variables] Class variables

    Dialog box: Class variables [Class variables]

  3. Select the desired attribute.

    Assign either a variable or a fixed value or a reference to the selected attribute:

    • Variable

      Select the corresponding variable in the list field.

    • Value

      Enter a fixed value.

    • Reference

      Enter a reference to another class.

    [Note]Note

    Only one of the 3 options is available at a time!

  4. -> The selected characteristic is displayed in the Characteristics [Attributes] (myclass1) field.
