4.24.5. Menu buttons

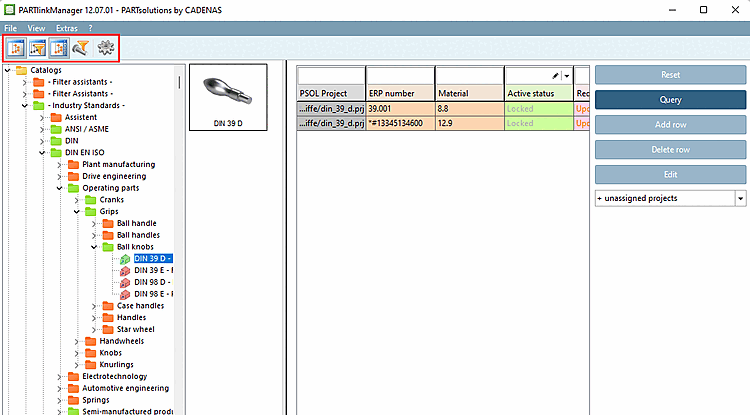

You will see the following toolbar in PARTlinkManager:

Some of the commands can also be found in the View menu [View].

The following explains the individual commands:

Button

Function

Switch tree on/off [Tree on/off] (toolbar) or Show tree (menu): Depending on the setting (see next button), the directory tree shows green and red or yellow folders.

Green for parts: These are linked in the LinkDB. Red for parts: These are not linked in the LinkDB.

Green for directories: These contain at least one part that is linked in the LinkDB. Red for directories: These do not contain any parts that are contained in the LinkDB.

Filter tree using the LinkDB entries [Filter tree based on LinkDB entries] (toolbar) or display tree filtered [Display filtered tree] (menu): Only parts and folders that contain links in the LinkDB are displayed. The folders are displayed in yellow.

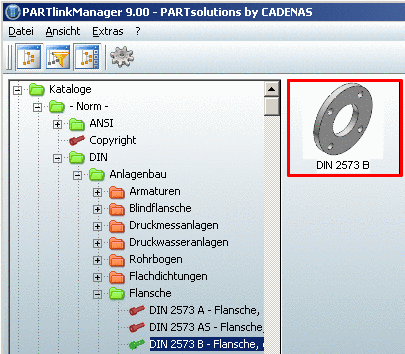

Show [Display preview] preview:

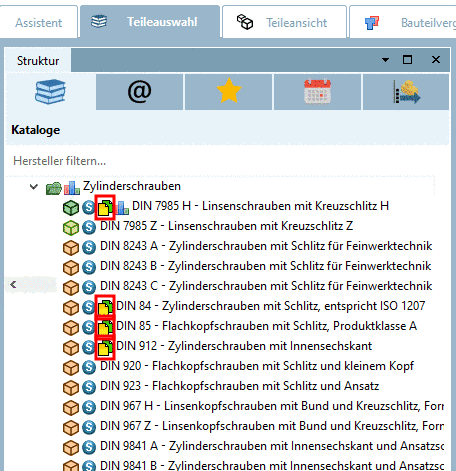

Hide [Hide old versions of parts] old component versions (toolbar and menu):

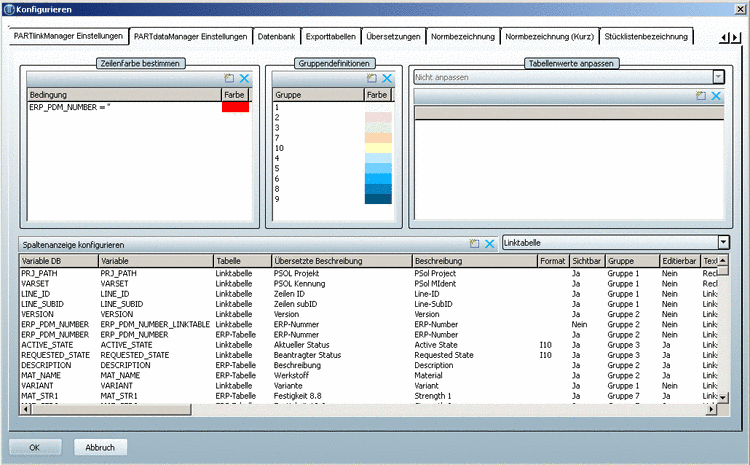

Configure [Configure ERP environment] ERP environment:

-> Call up the Configure dialog window

See Section 4.24.4.3.2, “ Configure ERP environment ”
