In the context menu of catalogs [Catalogs], click on the menu item Import catalog -> Import from PARTsolutions.

-> The Create a catalog of PSOL dialog box opens.

Select your desired PARTsolutions catalog.

Confirm with Next [Continue].

-> The setting options PARTsolutions-Import settings are opened. [PARTsolutions Import Settings]

Also activate Import existing documents only [Import only existent documents].

Option import link database fields [Import Link Database fields]: If the option is activated, the LinkDB columns are also imported and are available as class features.

-> The PARTsolutions catalog is imported now. After finished import you will get the respective confirmation message.

-> The standard user interface opens again. You can now see the imported catalog under the Catalogs menu item.

Note The catalog is imported but not yet committed. You can recognize this by the blue plus signs.

Initial upload

The blue plus signs signalize that the catalog has not yet been committed.

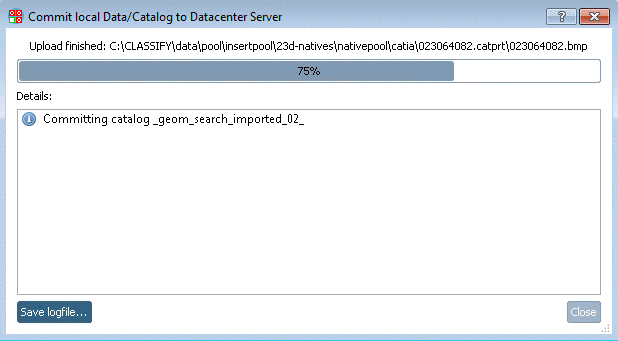

Commit local Data/Catalog to Datacenter Server

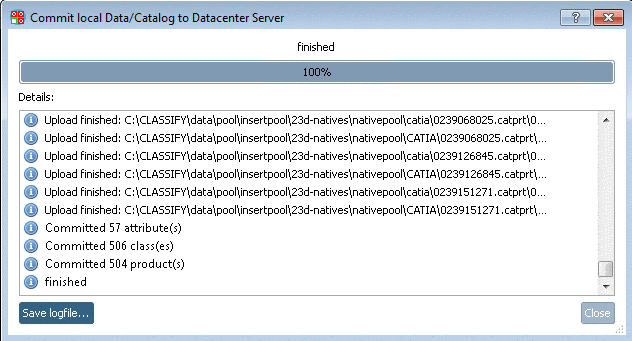

Once the process has finished "finished" is displayed in the log.

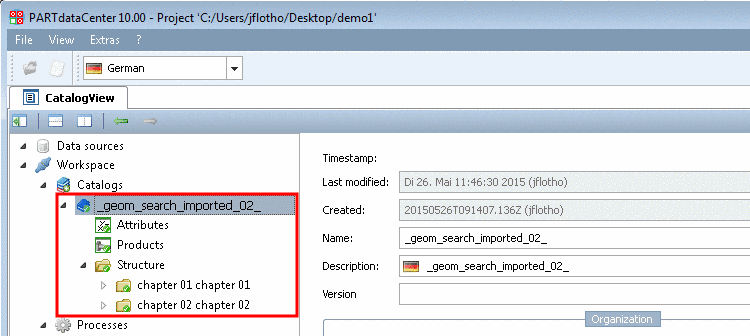

Now the catalog shows green checkmarks everywhere.
