1.3.7.  Torus

With this function you can search for internal and external tori.

  • Number [Amount]: You can search for a specific number of tori (without differentiating between inside tori and outside tori or with; see next point)

  • Orientation: Inside

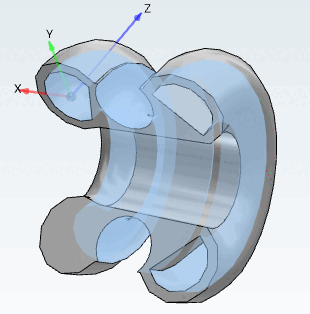

    Example: Part with 3 tori (Internal)

    Example: Part with 3 tori (Internal)

  • Orientation: Outside

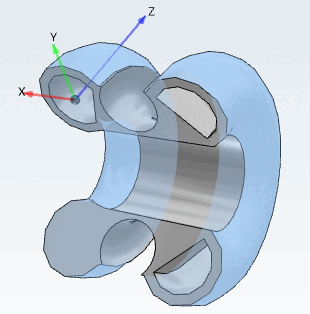

    Example: Part with 2 tori (External)

    Example: Part with 2 tori (External)

  • Small diameter [Minor Diameter]: Displayed under topology information [Topology information] as parameter D1 (for both torus outside and torus inside )

  • Large diameter [Major Diameter]: Displayed under topology information [Topology information] as parameter D2 (for both torus outside and torus inside )

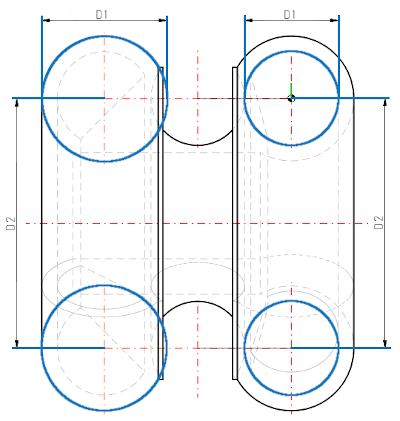

    Example - Left side large diameter [Major Diameter] (D2) and small diameter [Minor Diameter] (D1) of an outer torus, right side of an inner torus

    Example - Left side large diameter [Major Diameter] (D2) and small diameter [Minor Diameter] (D1) of an outer torus, right side of an inner torus
