4.24.8.2.7.3. Column sorting of geometry columns in PARTdataManager

In order to change the column sorting (for the current project), proceed as follows:

  1. PARTlinkManager -> Extras menu -> Database -> Edit additional tables

    Click on Edit additional tables to open the Edit table dialog box.

  2. Set "PRJTABLE " in the list field under Select table.

  3. Enter the project path in the PRJ_PATH column, enter the value COLUMN_SORT in the VKEY column and enter the geometric columns to be displayed in the front position in the VVALUE column. In the following example, these are the columns D, L and P.

  4. Now start PARTdataManager.

    The desired columns are displayed in the front (in the given sequence).

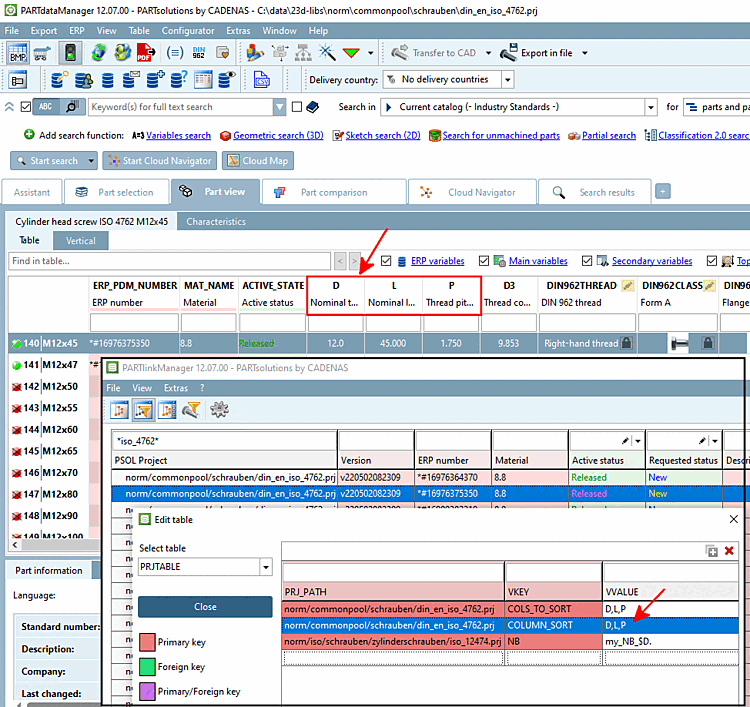

VKEY: COLUMN_SORT

VKEY: COLUMN_SORT

[Note]Note

Related subjects:

  • Column sorting of ERP columns

  • Geometry columns at a certain position between the ERP columns.

See Section 4.7.3.1, “ Roles: General " tab page ” -> Columns to be displayed [Column visibility].
