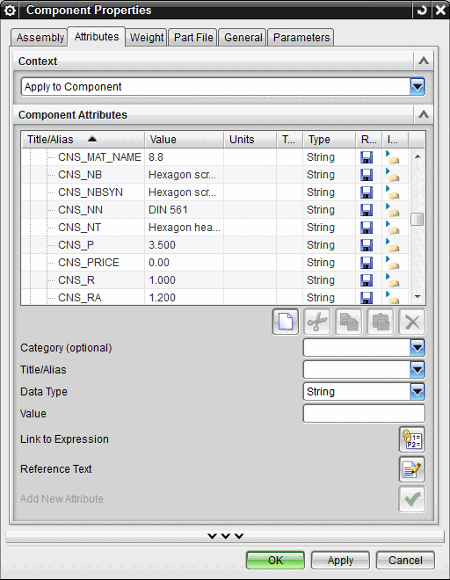

PARTsolutions Variables (geometric, NT, NN, LINA, etc.) and all fields of the link database (if there is an ERP link) can be transferred to NX via attribute mapping. These are then displayed in the Component Properties dialog.

Attributes with prefix "_CNS"

Attributmapping wird über folgende zwei Blöcke gesteuert:

AttributeMapping(is3d) In the AttributeMapping(is3d) block you can define whether the PARTsolutions standard attributes are to be exported to the CAD system and if so, in which language(s).

Set the desired language under Attr_CopyFrom_01. The keys Attr_Content_01 and Attr_Section_01 remain unchanged.

default: The attributes are exported in English. Assigned language: The standard attributes are exported in the indicated language.

Possible values:

default,german,english,italian,french,spanish,portuguese,czech,slovak,hungarian,slovenian,dutch,danish,finnish,russian,japanese,korean,chinese,polish

	Note
	If there is no translation for the indicated language of the attribute, no attribute is exported (not even from the german language).

No entry: If all Attr_CopyFrom fields are left empty, no standard attributes are exported. (If you explicitly want to export specific attributes, use the CadDocumentAttributes block) In NX, the attributes are displayed in the Component Properties dialog (see illustration above).

Define prefix for PARTsolutions attributes

In order to set a prefix do the following:

Insert a new key Attr_Prefix_01 via the context menu command Insert key. The key value is the prefix.

Save the settings in PARTadmin.

Export the part to NX.

-> Now all PARTsolutions attributes will contain the prefix (in the above example this is "CNS_").
