5.12.13.1. Classes

5.12.13.1.2. Class "CNSPIPECONNECTOR_ROUND"

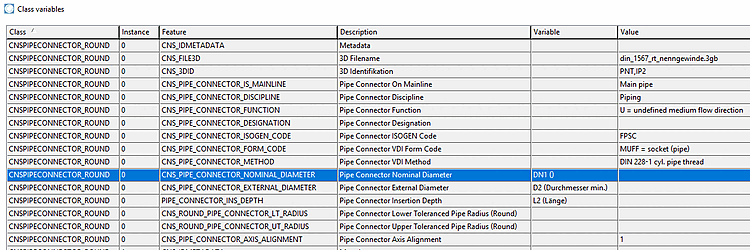

Listing of all attributes with possible values

Metadata: remains empty
3D filename: Entry is made automatically (when set via "Published Elements")
3D identification: Entry is made automatically (when setting via "Published Elements")
Pipe Connector On Mainline: Connection to main line or not (list field selection)
- Branch
- Main pipe
Pipe Connector Discipline:
- Piping: Supply lines for the transportation of gases and liquids such as water, oil or similar
  The capacity or inner diameter is important
  Statement of pipe thickness in schedule number
- Tubing: Empty tubes
  Important is the outer diameter (nominal dimension based on the outer diameter)
  Specification of the pipe thickness in mm or inches
- HVAC: Heating, Ventilation and Air Conditioning - Air ducts
- Conduit: conduits, cable ducts
- Electrical: Cable/power supply
Pipe Connector Function: Flow direction of the medium or fastening
- E = Inlet of a medium
- A = Outlet of a medium
- U = Undefined medium flow direction
- B = Fastening connection (e.g. to fasten burners to boilers)
Pipe Connector Designation: Type of use of the connection
- System (=Gobal):
- Supply
- Return
Note
If not specified, ideally, value "Global" should be used (to avoid problems if flow direction is changed).
Pipe Connector ISOGEN Code: ISOGEN code for the component (4 letters)
Reference Guide: https://docs.hexagonppm.com/reader/0lruBS_9RMe3GCYewUDFLw/jzNMOLyC0egjVBNRXD5wrg
There are some overlaps between the ISOGEN Code and the VDI Form Code.
Pipe Connector VDI Form Code:
There are some overlaps between the ISOGEN Code and the VDI Form Code.
Pipe connection forms
For pipes, the following connection forms are distinguished by means of appropriate codes (the zero points of the connection coordinate systems lie on the connection points marked with a circle).
List field selection: e..g. NIPP, MUFF, GLAT, RUF, OVFL (see VDI 3805)

GLAT: Flat face

MUFF: Socket

NIPP: Fitting

RUFL: Round flange

OVFL: Oval flange

ZWFL: Intermediate flange

Connection forms for air ducts
For air ducts, the connection forms are distinguished by means of appropriate codes (the connection points are marked by a small circle in each case).

LREF: Rectangular flange

LREM: Rectangular socket

LREN: Rectangular fitting

LREL: Rectangular hole fitting

LTRF: Trapezoid flange

LTRM: Trapezoid socket

LTRN: Trapezoid fitting

LTRL: Trapezoid hole fitting

LOVF: Oval flange

LOVM: Oval socket

LOVN: Oval fitting

LOVL: Oval hole fitting

LRUF: Round flange

LRUM: Round socket

LRUN: Round fitting

LRUL: Round hole fitting

PipeConnector VDI Method:

The connection method is determined by an alphanumeric code which defines the qualitative form of the active area pairing in the connection. It can be made up of, e.g., a DIN number for the type of thread or flange, combined with a pressure stage or rating provided that the latter has an impact on the form of the active area (e.g. in the case of flanges).

Note

Only identical connections fit together!

The visible indication complies with a unique token.

DIN 13-1 Metric thread	13T1
DIN 13-2 Metric fine pitch thread	13T2
DIN 13-3 Metric fine pitch thread	13T3
DIN 13-4 Metric fine pitch thread	13T4
DIN 13-5 Metric fine pitch thread	13T5
DIN 13-6 Metric fine pitch thread	13T6
DIN 13-7 Metric fine pitch thread	13T7
DIN 13-8 Metric fine pitch thread	13T8
DIN 13-9 Metric fine pitch thread	13T9
DIN 13-10 Metric fine pitch thread	13T10
DIN 13-11 Metric fine pitch thread	13T11
DIN 103-2 ISO trapezoidal thread metric	103T2
EN 226 Burner connection up to 72 KW	EN226KW72
EN 226 Burner connection up to 150 KW	EN226KW150
DIN 228-1 Cylindrical pipe thread	228T1
DIN 405-1 Round thread	405T1
DIN 477-1 Gas cylinder thread, tapered	477T1K
DIN 477-1 Gas cylinder thread cylindrical	477T1Z
DIN 1298 Flue gas connection	1298
DIN 2999 Taper. pipe thread	2999
DIN 3239 Weld-on end form B	3239
DIN 3502 Taper. pipe thread	3502
DIN 3858 Taper. pipe thread	3858
DIN 2501 Flange PN6	2501PN6
DIN 2501 Flange PN10	2501PN10
DIN 2501 Flange PN16	2501PN16
DIN 2501 Flange PN25	2501PN25
DIN 2501 Flange PN40	2501PN40
DIN 2501 Flange PN63	2501PN63
DIN 24145 Spiral duct (push-fit connection)	24145
DIN 24193 Angled flanges series 1	24193R1
DIN 24193 Angled flanges L series 2	24193LR2
DIN 24193 Angled flanges FL Series 2	24193FLR2
DIN 24193 Angled flanges L series 3	24193LR3
DIN 24193 Angled flanges FL Series 3	24193FLR3
Ventilation frame connection SB20	LRVSB20
Ventilation frame connection SB30	LRVSB30
Ventilation frame connection SB40	LRVSB40
Conical connections (Euro cone)	DIN3838V
DIN 2501 Flange PN100	2501PN100
DIN 2501 Flange PN160	2501PN160
DIN 2501 Flange PN250	2501PN250
DIN 2501 Flange PN320	2501PN320
DIN 2501 Flange PN400	2501PN400
DIN EN 12220 Ventilation pipe-flange connection	12220
DIN 24154 Ventilation pipe-flange connection	24154
Ventilation duct plug-in connection	LKS
Ventilation Fire protection push-fit socket/glue connection	LBSK
Ventilation Fire protection flange connection	LBF
Ventilation duct-spigot connection	LKST
Ventilation pipe-spigot connection	LRST
DIN 2353 Cutting ring fitting	2353
DIN 2558 Oval threaded flanges; PN6	2558
DIN 2561 Oval threaded flanges; PN16	2561
DIN EN 1254 Copper pipe solder joint	1254
Ventilation clamping ring connection	LSPR
Ventilation Adhesive tape connection	LKBND
DVS 2208 butt-welded joint	2208
DIN EN 1092-1 Steel flanges	EN1092-1/tt/bb/PNpp
DIN EN 1092-2 Cast flanges	EN1092-2/tt/bb/PNpp
DIN EN 1092-3 Copper flanges	EN1092-3/tt/bb/PNpp
DIN EN 1092-4 Aluminium flanges (tt = type designation as per DIN EN 1092-1 to 4) (bb = sealing face designation as per DIN EN 1092-1 to 4) (pp = nominal pressure designation as per DIN EN 1092-1 to 4) (example: EN1092-1/01/A/PN40 )	EN1092-4/tt/bb/PNpp
DIN EN 12627 Weld ends pp = nominal pressure designation according to DIN EN 12627)	EN12627PNpp
DIN EN 12760 Welding sockets pp = nominal pressure designation according to DIN EN 12760)	EN12760PNpp
DIN EN 10226 Taper. pipe thread	EN10226
DIN EN 12627 Weld-on ends for steel fittings	EN12627
DIN EN 1506 Round air ducts, overlap connection	EN1506
DIN EN 12220 Dimensions of round flanges for ventilation purposes	EN12220

Pipe Connector Nominal Diameter: Nominal (inner) pipe connection diameter. Is controlled via a corresponding variable.

Example: Pipe Connector Nominal Diameter: Variable "DN1"
Pipe Connector External Diameter: External pipe connection diameter. Is controlled via a corresponding variable.

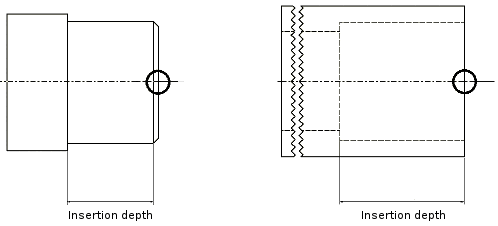

Pipe Connector Insertion Depth: Insertion depth. Is controlled via a corresponding variable.

Note
For the connection forms "Fitting" and "Socket" the insertion depth has to be stated.
