7.9.3.7.4.  Circle tangent to 3 circles

Circle tangent to 3 circles [Circle tangent to 3 circles]

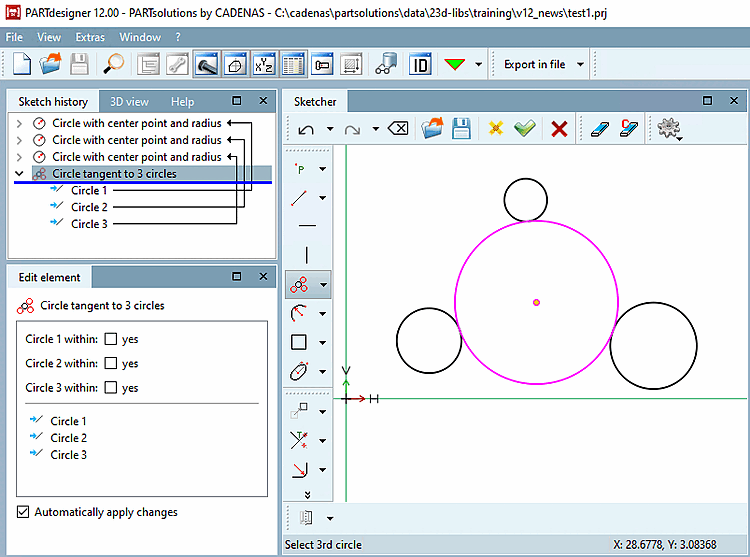

Tangent circle within 3 original circles

Tangent circle within 3 original circles

  1. Activate the tool Circle tangential to 3 circles [Circle tangent to 3 circles].

  2. One after another select the 3 original circles.

    -> The new circle is inserted tangential to the 3 original circles.

In the Edit element docking window, you have the option of placing one, two or all three original circles in the tangentially touching circle.

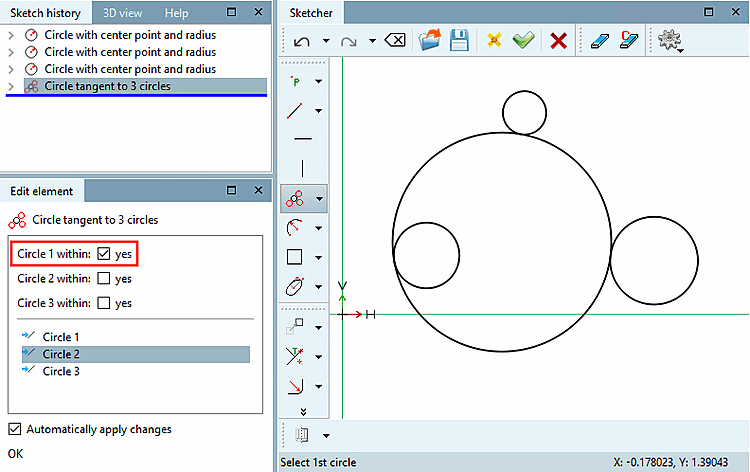

Example: Circle 1 inside the tangent circle

Example: Circle 1 inside the tangent circle

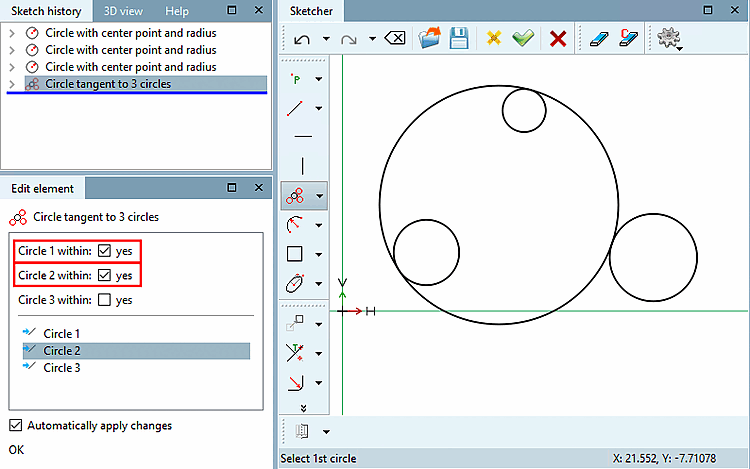

Example: Circle 1 and 2 inside the tangent circle

Example: Circle 1 and 2 inside the tangent circle

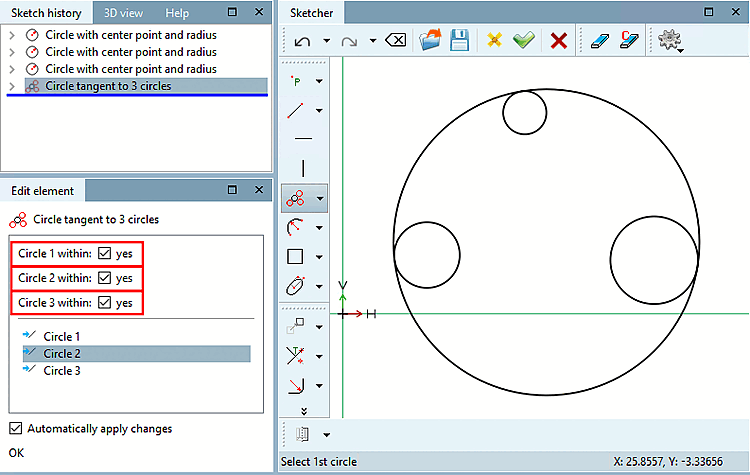

Example: Circle 1, 2 and 3 inside the tangent circle

Example: Circle 1, 2 and 3 inside the tangent circle
