1.3.4.12.3.13.  Linear Hole Pattern

With this function you can search for linear hole patterns.

  • Number: Number of patterns in the searched part

  • Number of width [Amount Width] / number of height [Amount Height]: Number of individual pattern elements in width and height

    [Note]Note

    In staggered arrangements, the elements of the staggered row are also counted.

    Example: Width = 10 elements, height = 3 elements

    Example: Width = 10 elements, height = 3 elements

    X-distance [Distance X] / Y-distance [Distance Y]:

    Distance between two pattern elements in the direction of the X and Y axes

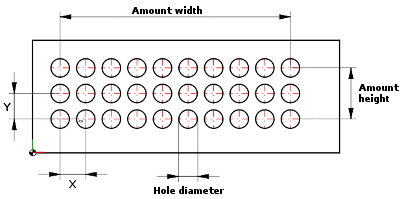

    a) Number of widths [Amount Width] (here 10 elements as an example), b) Number of heights [Amount Height] (here 3 elements as an example), c) Hole diameter

    a) Number of widths [Amount Width] (here 10 elements as an example), b) Number of heights [Amount Height] (here 3 elements as an example), c) Hole diameter

  • Arrangement

    • Straight

      Arrangement: Straight

      Arrangement: Straight

    • Staggered

      Arrangement: Offset [Staggered]

      Arrangement: Offset [Staggered]

      [Note]Note

      For staggered patterns not the absolute distance from hole center to hole center is decisive, but the distance in direction of X and Y axis.

Hole Attributes

  • Diameter / depth [Depth]

    Diameter and depth

    Diameter and depth

  • Lowering type Start:

    None

    None

    Countersink

    Countersink

    Counterbore

    Counterbore

  • Lowering type End:

    Through-hole Through-hole Through-hole Blind hole

    None

    None

    Countersink

    Countersink

    Counterbore

    Counterbore
