4.15.3.2.1. Preparations

Install catalog_update_v1.cip.

You can find the sample files in your installation under $CADENAS\training\update_manager.

  1. Install CATALOG Update Test.

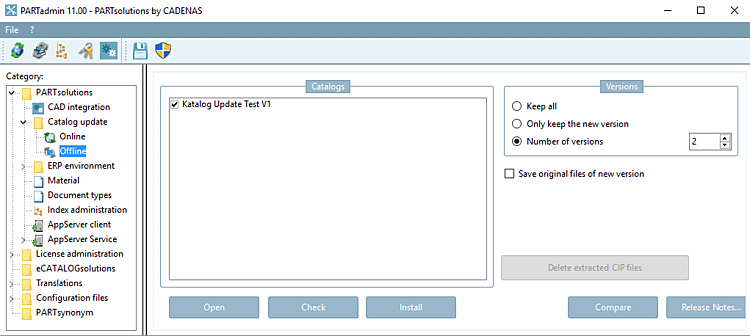

    PARTadmin -> Catalog update -> Offline

    PARTadmin -> Catalog update -> Offline

  2. Import all projects from "catupdate_test" into the PARTlinkManager.

  3. Assign ERP numbers to the individual lines.

    Select all data records and click on Assign ERP numbers in the context menu.

  4. The Generate value sequence dialog box opens.

    Click on Generate and then confirm with Ok.

    -> The automatically generated ERP numbers are assigned.

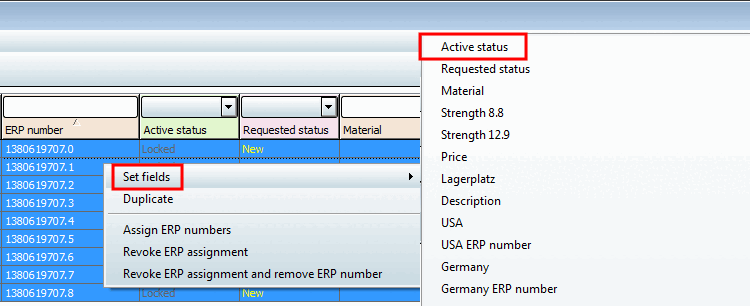

  5. Select all data records again and click on Set fields -> Current status [Active status] in the context menu.

  6. The Set values dialog box opens.

    Select Released in the list field and confirm with OK.

  7. The PARTlinkManager now shows a small but realistic initial situation. The further procedure is now explained based on this data.

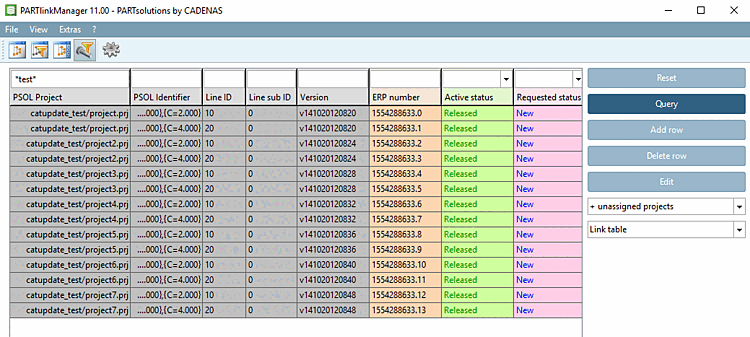

    Initial situation in PARTlinkManager

    Initial situation in PARTlinkManager
