10.4.11.  Image

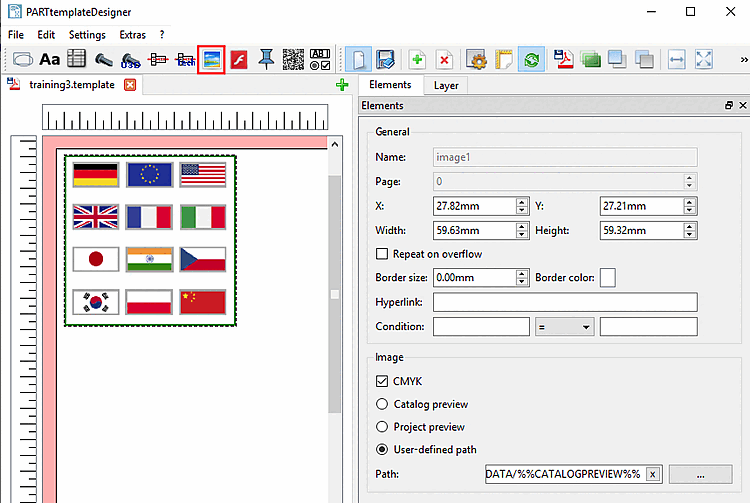

In this section you will find explanations of the setting options for picture [Image] .

  • General: See Section 10.4.2, “General settings”.

  • Image:

    • CMYK:

    • Mask transparency:

      Result in datasheet with enabled option

      Result in datasheet with enabled option

      Result in datasheet with disabled option

      Result in datasheet with disabled option

    • Catalog Preview [Catalog preview]:

    • Project preview:

    • User-defined path:

    • Path [Directory]:

      After dragging out the image area with the cursor, for a start the standard catalog bmp-image is loaded by default.

      Use Browse ... to set the path to the desired image.

      Allowed image formats are PNG, JPG, TIFF and BMP.

      (Images can also be inserted via clipboard.)
