8.4.14.  QRCode

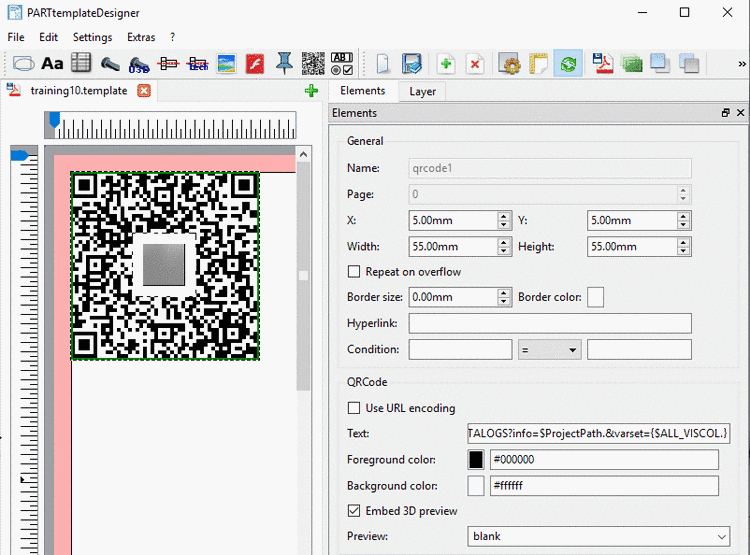

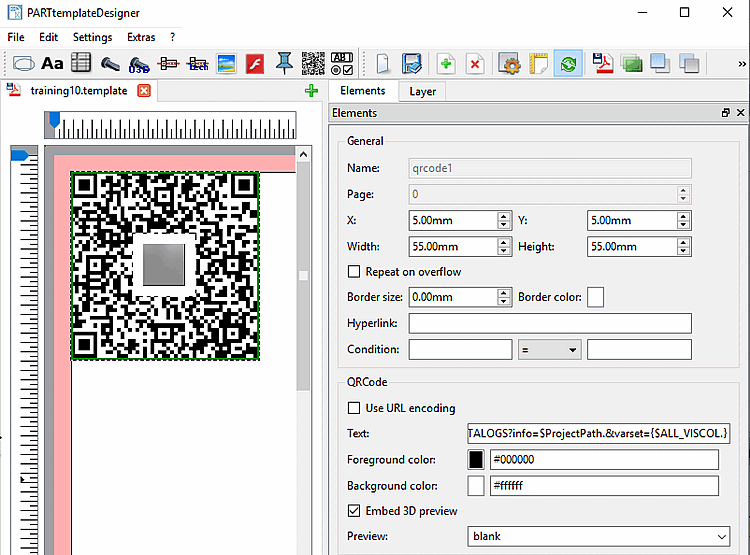

In this section you will find explanations of the QR code [QRCode] setting options.

  • General: See Section 8.4.2, “General settings”.

  • QR code [QRCode]:

    • Use URL coding [Use URL encoding]:

    • Text:

      The information used in the Text input field is embedded in the code.

      The following string is inserted in the text field by default.

      http://b2b.partcommunity.com/portal/portal/CAD+CATALOGS?info=$ProjectPath.
&varset={$ALL_VISCOL.}

      The link points to the b2b portal, the project path and all visible columns are read out.

      • Adjust the link to your company address.

        Example:

        http://www.meine_firma.de/showproject.asp?NR=$BNR.

      • You can state any part parameters such as $NN., $NT., $NB., $ALL_VISCOL. (all visible parameters), $ALL_COL. (all parameters), $ProjectPath. (project path) or the part number for example.

    • Foreground color / background color [Background color]:

    • embed 3D preview [Embed 3D preview]:

    • Preview: e.g. blank

      You can select from the standard background templates:
