7.9.3.3. Delete
7.9.3.3.1. Delete from history and sketch
Prev  Next
7.9.3.3.1. Delete from history and sketch

Delete selected step

Removes any step from the sketch and the history.

[Note]Note

If the button is grayed out, this is a step with dependent elements. These can only be deleted together. See Delete selected step with dependent elements.

  1. In the Sketcher, click on the element (multiple selection also possible) that you want to remove.

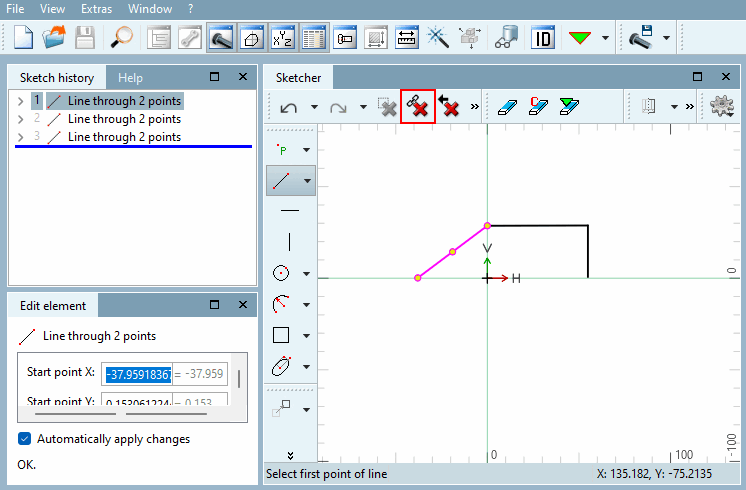

    Selection before deletion

    Selection before deletion

  2. Click on Delete selected step.

    Alternatively, you can right-click on the selected steps in the sketch history [Sketch history] to open the context menu and click on Delete step.

    → The selected elements are deleted from the history and the sketch.

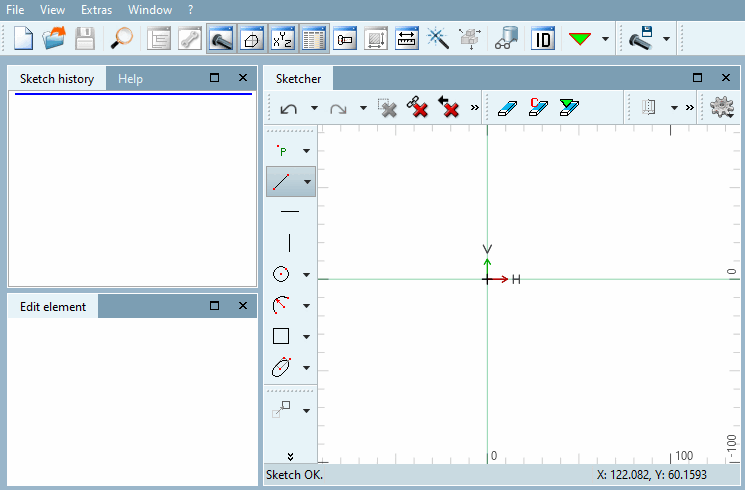

    Result after deletion

    Result after deletion

Delete selected step with dependent elements

Removes one or more steps and all dependent steps from the sketch and the history.

  1. In the Sketcher, click on the element you want to remove.

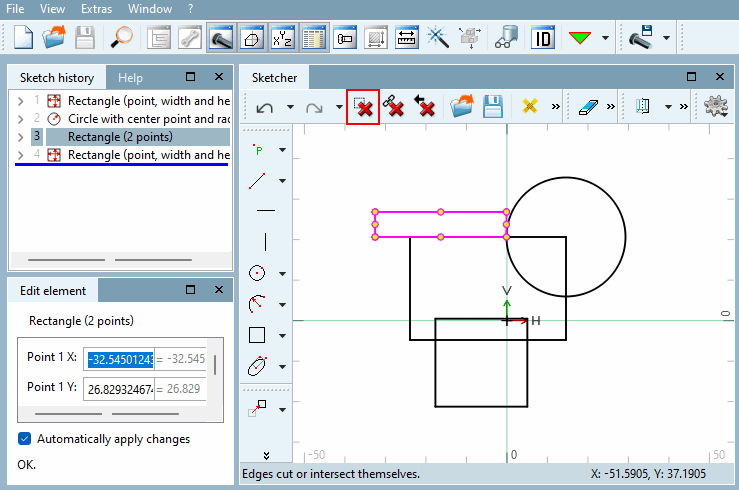

    Selection before deletion

    Selection before deletion

  2. Click on Delete selected step with dependent elements.

    → The selected step (multiple selections are also possible) is deleted from the history and the sketch along with all dependent elements.

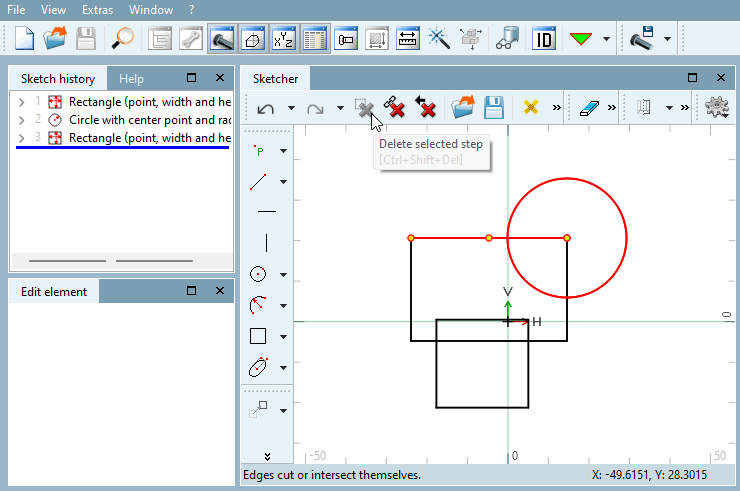

    Result after deletion

    Result after deletion

Delete last step

Removes the last step from the sketch and the history.

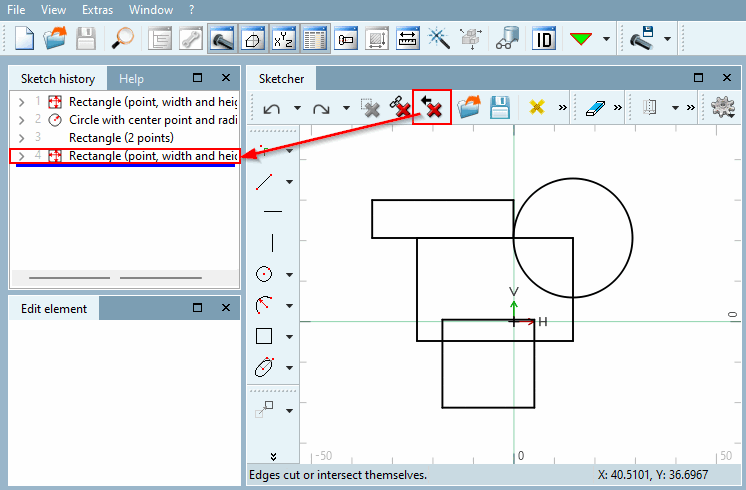

Event display Delete last step

Event display Delete last step
