3.2.5.1. Working with drag & drop

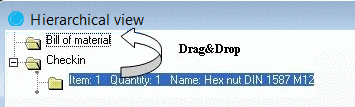

Part is located in the Checkin [Check-in] folder.

Select the part with the mouse arrow and drag it to the Parts list [Bill of material] folder while holding down the mouse button (left).

As soon as a frame (blue) appears around the BOM [Bill of material] folder, release the mouse button.

--> The part is stored as a subfolder of the parts list [Bill of material].

Within a folder you can set hierarchies as well. In other words you can change the Sequence of the deposited parts (folder) or make subdirectories for other folders.

Parts dragged and dropped (folders) can either be stored in the main folders (checkin [Check-in] or parts list [Bill of material] ) or as subdirectories for insertion points - e.g. item 3.1 for within the folder item: 3.

[Note]Note

Only self added parts and assemblies may contain sub-directories!

Single parts, for example from the PARTdataManager, cannot be divided into sub-folders.
