1.4.5.9.2.  Server Info

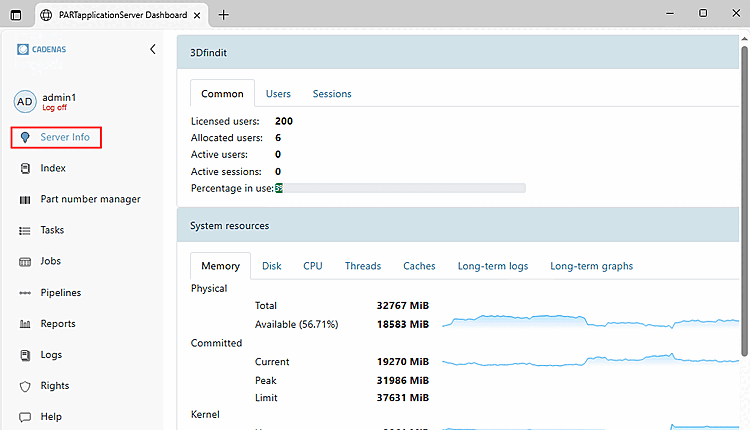

Under Serverinfo you will find a large number of subheadings, organized via Tabbed pages. A few points are listed below as examples:

  • 3Dfindit

    • General

    • Users

    • Meetings

  • System resources

    • Memory

    • Disk

    • CPU

    • Threads

    • Caches

    • Long-term values

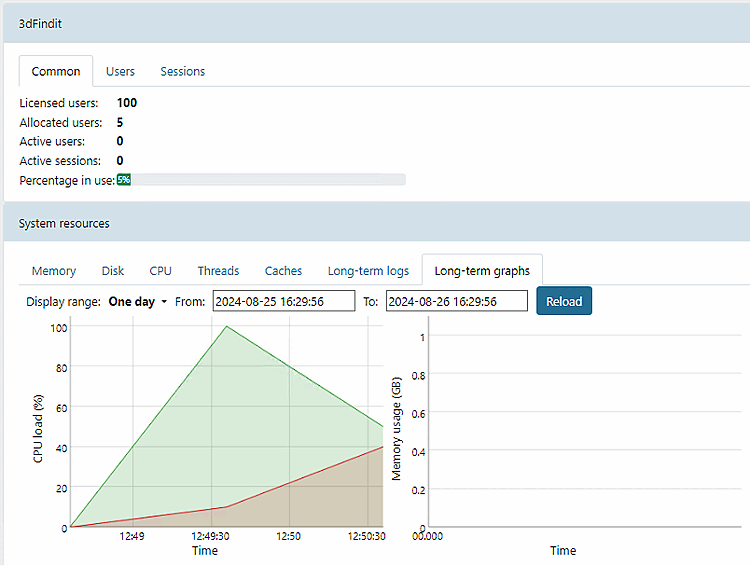

    • Long-term graph

      pappserver.cfg

      [ManagementModule]
EnableInterceptor=true
EnablePerfLogToDB=true

      Wenn Sie Auswertungen sehen möchten, die in der Vergangenheit liegen, müssen diese in der Datenbank abgelegt werden. Setzen Sie hierzu den Schlüssel EnablePerfLogToDB auf "true".

  • Server status

    • Services

    • Web modules

    • Users

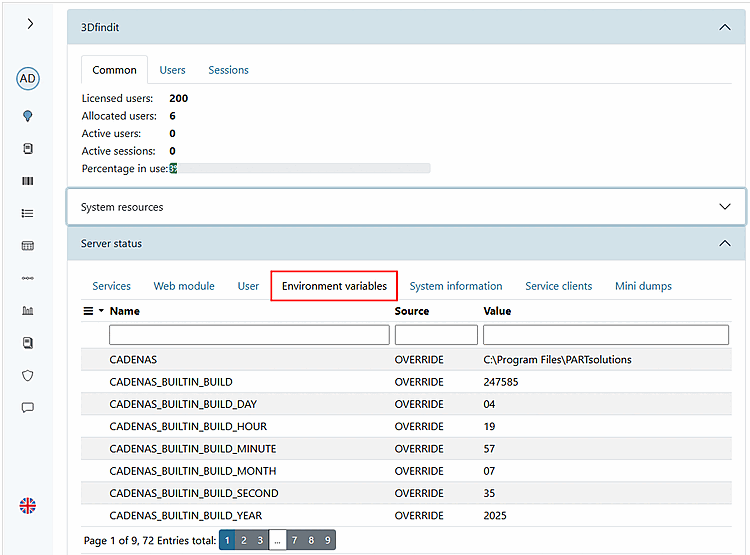

    • Environment variables: All environment variables of the server are displayed, for example CADENAS_DATA or CADENAS_LICENSE.

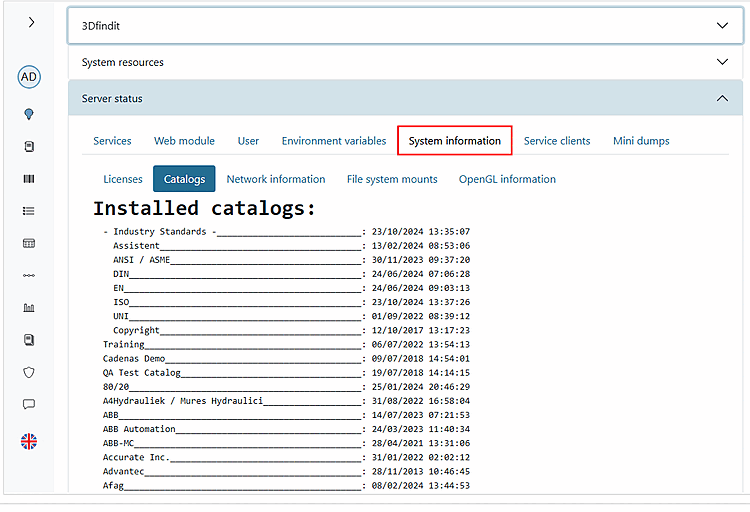

    • System information: On the System information Tabbed page you will find subcategories for licenses, catalogs, network information, file system mounts and OpenGL information.

    • Service clients

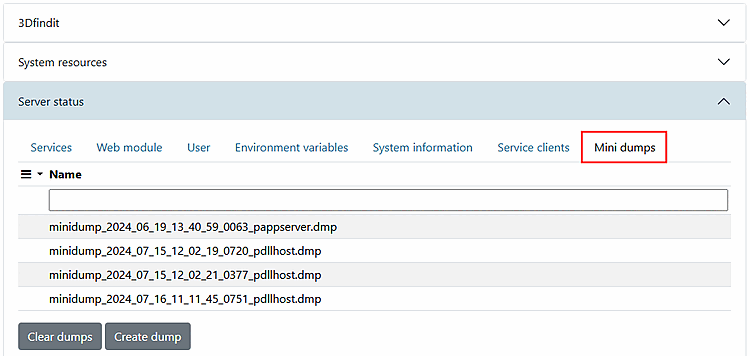

    • Mini-dumps: Mini-dumps of the PARTapplicationServer

[Note]Note

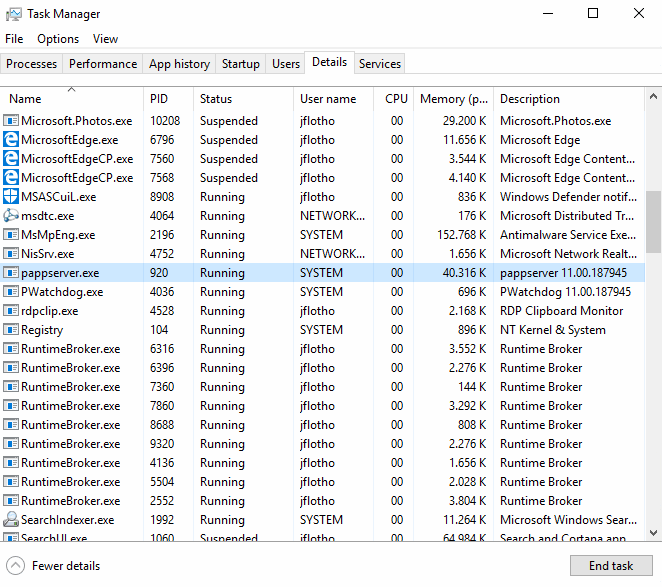

If needed, have a look on server processes.

Each accessing client creates a process on the PARTapplicationServer.
