3.1.9.4. Export " Other " formats

3.1.9.4.6. Export QR code

QR Code (Quick Response) is also available as an export format.

Troublesome typing of links and information is not necessary anymore.

The feature can also be used in print catalogs. CAD models can be downloaded directly from the print catalog in a single step.

To export the QR code for an individual project, proceed as follows:

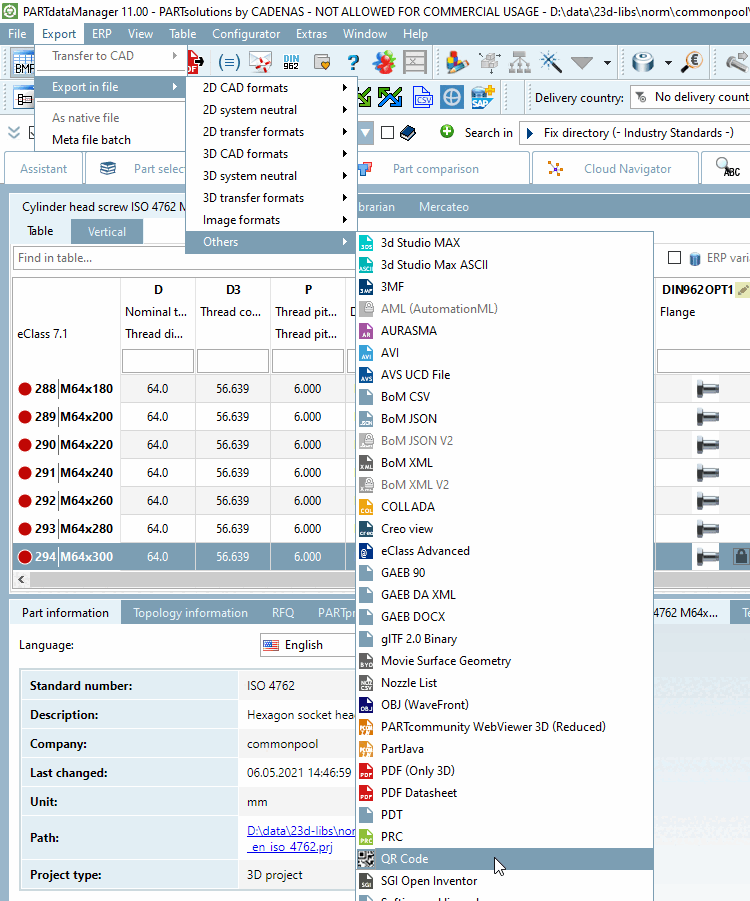

Call: Export menu -> Export to file [Export in file] -> Other [Others] -> QR Code

Export format: QR Code

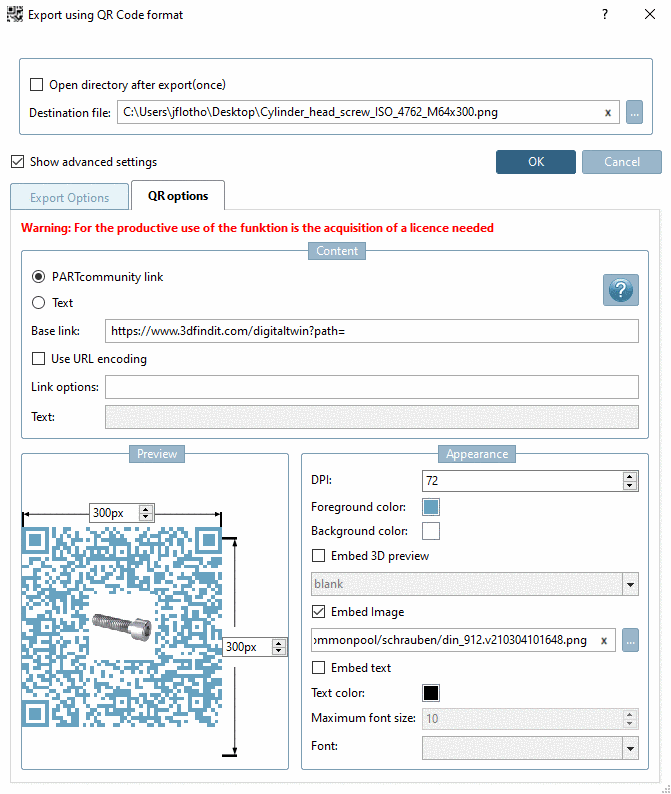

Settings tab page QR options:

The information used in the Basic link, Link options and Text input fields is embedded in the code. Component parameters such as $NN., $NT., $NB., $ALL_VISCOL. (all visible parameters), $ALL_COL. (all parameters), $ProjectPath. (project path) can be used.

There are two basic settings:

PARTcommunity Link [PARTcommunity link]:
If PARTcommunity Link [PARTcommunity link] is selected, the base link, the project path and the link options are automatically put together.
Examples:
- Link PARTcommunity project
  Entry under basic link:
```
https://www.3dfindit.com/digitaltwin?path=
```
  No entry under Link options:
- Link PARTcommunity project and line
  Entry under Base link:
```
https://www.3dfindit.com/digitaltwin?path=
```
  Entry under Link options:
```
&varset={$ALL_VISCOL.}
```
Text:
If text [Text] is selected, you can create any combination. These can either be links or other texts that are to be saved in the QR.
Example:
Link to your own home page with order number BNR (from table)
```
http://www.meine_firma.de/showproject.asp?NR=$BNR.
```

Settings Tabbed page Export options [Export Options]: See Section 3.1.9.1.5, “ Export options " tab page -> Export accuracy ”.

Batch export

You can also export the QR code for entire directories:

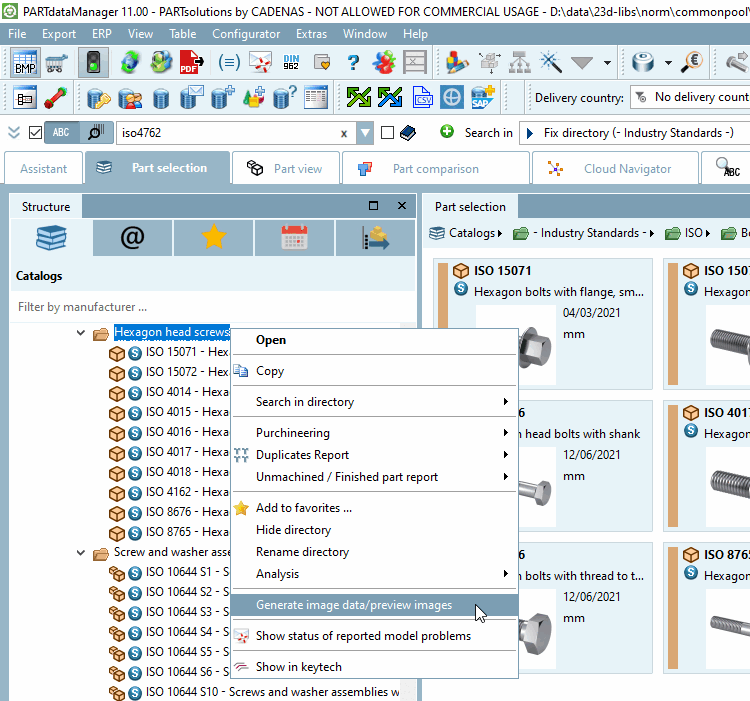

Call in PARTdataManager
Right-click on the index tree -> Generate image data/preview images
Call in PARTproject
Right-click on the index tree -> Output -> Generate image data/preview images -> Export image data [Export images] export mode
(The dialog is the same like under PARTdataManager, but here no preview image is displayed.)

-> The Export image data [Export images] dialog box opens.

Select the export mode Export image data [Export images].

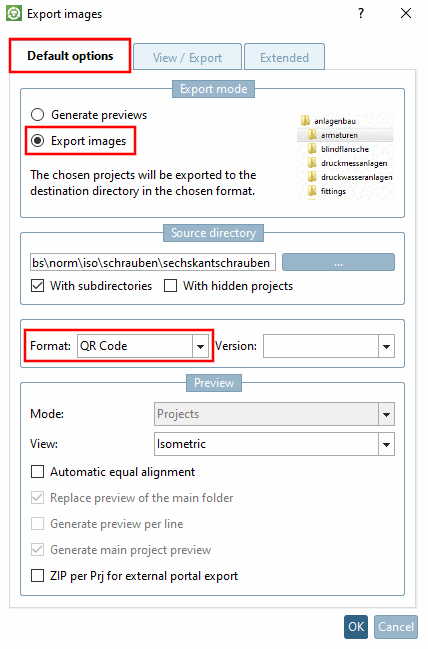

Standard options [Default options] tab page

Select the QR Code format.

View / Export tab page

Select the target path under Export and, if necessary, adjust the default settings under Names for exported files [Name of exported files].
