In 3Dfindit via the button Add to link database or in PARTdataManager via the button Add data [Add dataset to link database] record to link database

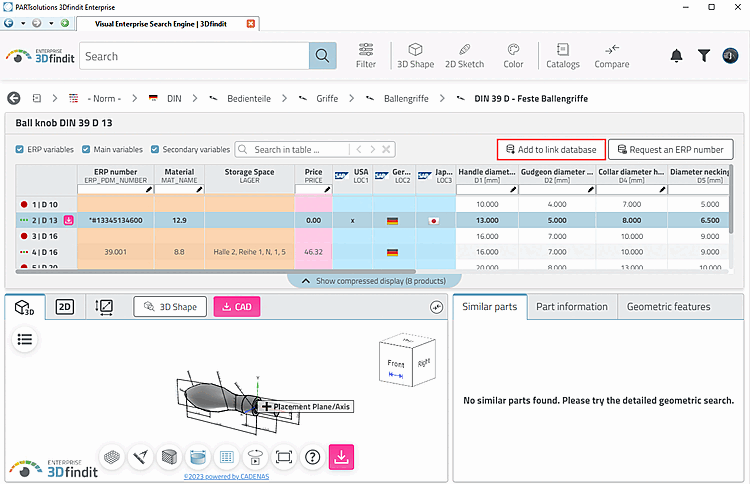

3Dfindit: Add to link database

-> The New ident number [new ident-no.] input window opens, which can be freely configured (see Section 4.11, “ Design "New ident number " dialog box - erpcustom.cfg -> Block [USERDIALOG] ”). Material, prices or any other fields from the LinkDB can also be displayed here, for example.

New Ident Number [new ident-no.] dialog box - variant 1

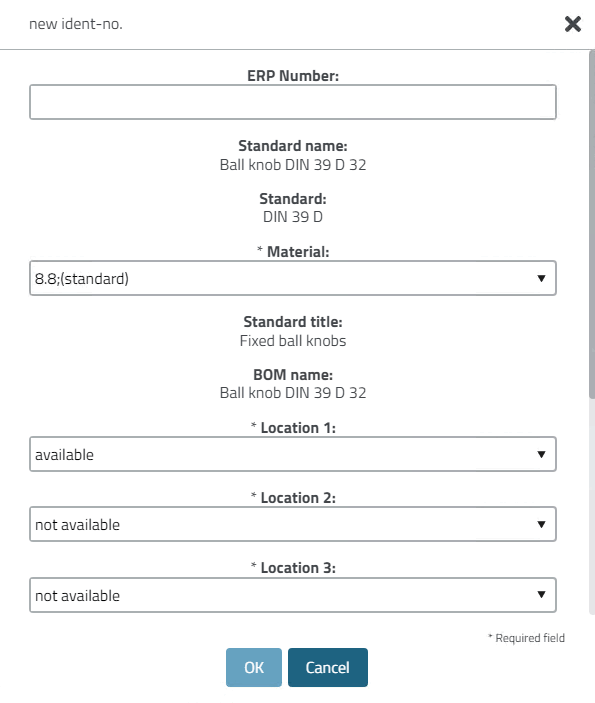

New Ident Number [new ident-no.] dialog box - variant 2

Directly by clicking on Export to CAD (3Dfindit and PARTdataManager analog). See Section 4.12.1.2.3, “ Create ERP number directly on export ”.

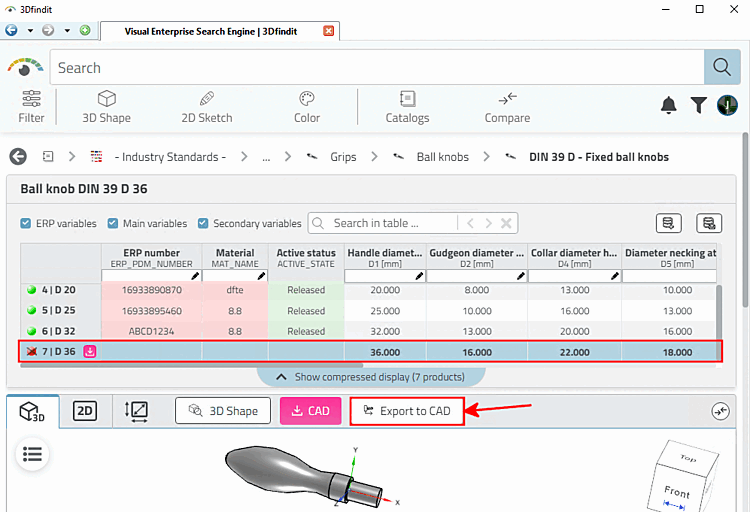

Example 3Dfindit

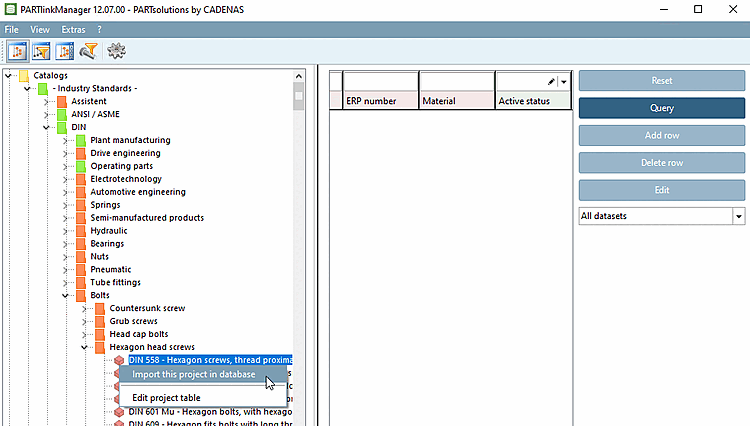

Import into the LinkDB from the directory tree using Import this project into the database [Import this project in database].

These data records do not yet have an ERP_PDM_NUMBER and are displayed as a red line after the import.

See Section 4.12.1.3.1, “Import a project into LINKDB – Assign ERP number ”.

During the initial filling of the LinkDB with PARTdataCenter. See Section 1.1, “ Article assignment (initial filling of the LinkDB) ” in PARTwarehouse Manual.
