6.10.2. Check ERP mapping (Add ERP mapping... and Edit ERP mapping...)

6.10.2.3. User interface: Reference of icons and functions in detail

6.10.2.3.1. Plus button
6.10.2.3.2. Map resolved value ranges
6.10.2.3.3. Generate algorithm matching the selected line and copy it to clipboard
6.10.2.3.4. x-Button
6.10.2.3.5. Blue arrow button
6.10.2.3.6. Open project
6.10.2.3.7. Approve assignment
6.10.2.3.8. Verify all mappings
6.10.2.3.9. Different options
6.10.2.3.10. Save via OK button

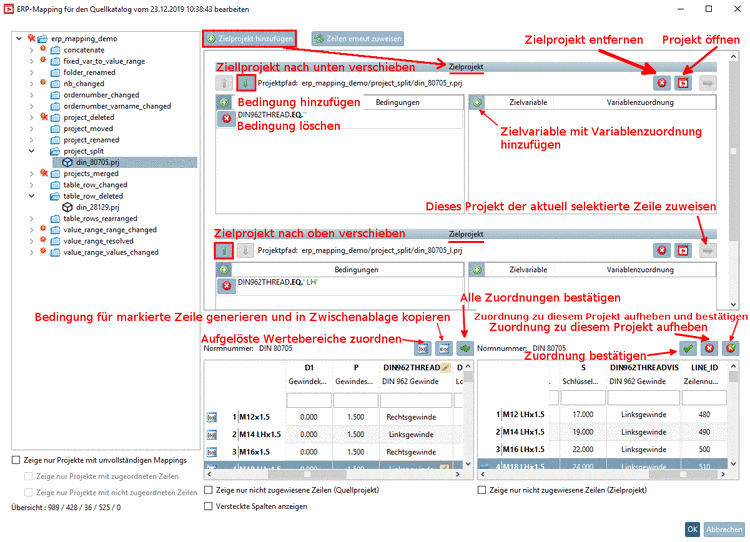

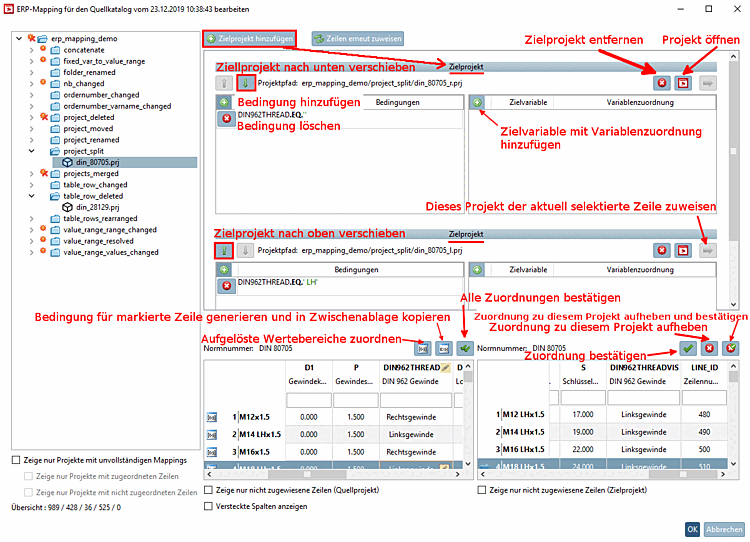

User interface of the Edit ERP mapping [Edit ERP mapping] dialog box

User interface at a glance

Icons in the directory tree

In the index tree you can see at a glance which projects have automatically been completely mapped (they do not show icons) and which projects have been automatically mapped, but still need to be verified (and possibly edited).

Bitmap

Meaning

no icon

There are changes (otherwise there would be no display at all), however, such ones do not need to be confirmed.

	Note
	Especially value ranges need greatest care. Here, sometimes no icon is displayed and nevertheless, the project needs a check and possibly, has to be verified. See Section 6.10.2.4.16, “Value range: Changed range”.

In following cases there is no need for verification:

... Renamed variable (see Section 6.10.2.4.21, “Renamed value range variables” or Section 6.10.2.4.22, “Renamed fixed variables”)
... Changed project name (see Section 6.10.2.4.8, “Changed project name”)

Changes available

These must be confirmed manually and edited if necessary.

Project/directory/catalog contains at least one line that could not be assigned.

The change must be confirmed.

You may also be able to assign the correct line manually using can be assigned manually. See below.

Confirmed (regardless of whether assigned or deleted)

There was an error when opening the table of source project.

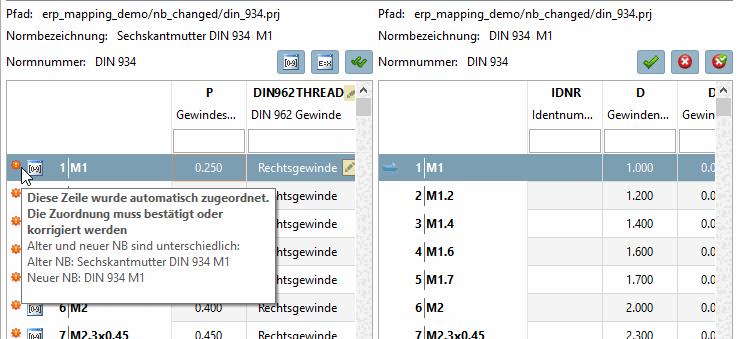

Tooltips in the tree

When moving the mouse over icons tooltips are displayed.

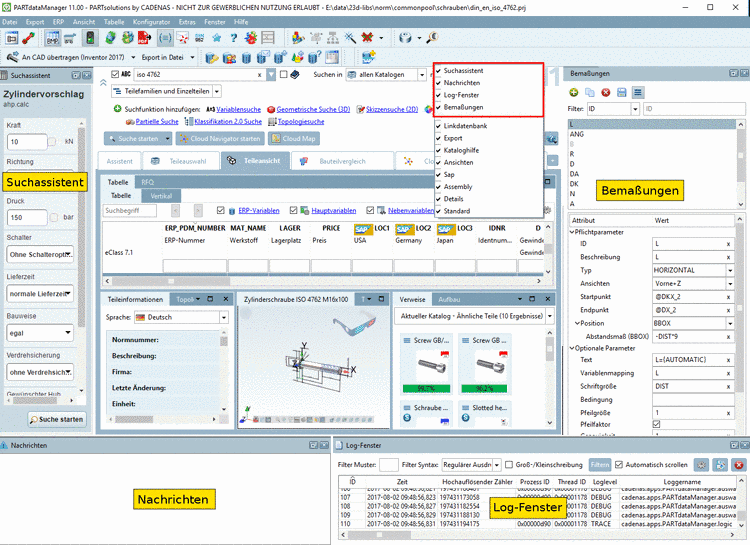

Tooltip

Icons in the table

Bitmap

Meaning

no icon

Although there are changes (otherwise there would be no display at all), these do not normally need to be confirmed

Note

Especially value ranges need greatest care. Here, sometimes no icon is displayed and nevertheless, the project needs a check and possibly, has to be verified. See Section 6.10.2.4.16, “Value range: Changed range”.

Furthermore, if certain lines (characteristics) no longer exist (see Section 6.10.2.4.13, “Deleted/hidden table row” -> project din_28129.prj ). Only when a suitable condition has been formulated are the unassigned rows marked correctly.

In following cases there is no need for verification:
