1.3.3.6.6.9.  Cleanup versions

The Purge versions [Cleanup versions] function can be used to remove old catalog versions that are no longer required from the directory tree.

If catalogs are renewed through updates in the course of time, the existing catalog data are not deleted, but rather receive a time stamp add-on in their file attachment, which stands for the respective version of the catalog (see image below).

The higher the number, the newer the catalog status.

You can call up Clean up versions [Cleanup versions] either via commands or via the context menu of the catalog.

In the following the single functions will be explained.

Versions

Keep all

All older catalog versions will be deleted except for the newest ones

Only keep the current version

All older catalog versions will be deleted except for the newest ones

Keep number of versions

You may select for yourself how many versions you would like to keep. Should you enter "1", his will result in the same as the previous point.

Save original files of current version

If you activate this option, the index management creates " backup files " of the latest catalog version. These can be recognized in the directory tree by the extension "original ". This is useful if you use eCATALOGsolutionsto make changes to the current parts (see), but want to keep the original version for security reasons.

Cleanup database entries

If you not only want to clean up the project versions, but also the associated entries in the link database [Link database], then activate the option.

Installation history:

Do not delete

Only keep the current version

Delete complete installation history

Concerns e.g. PARTdataManager -> "History" [History] tab page (see next figure, see Section 1.3.3.1.5, “Check project changes in detail (after the installation) ”)

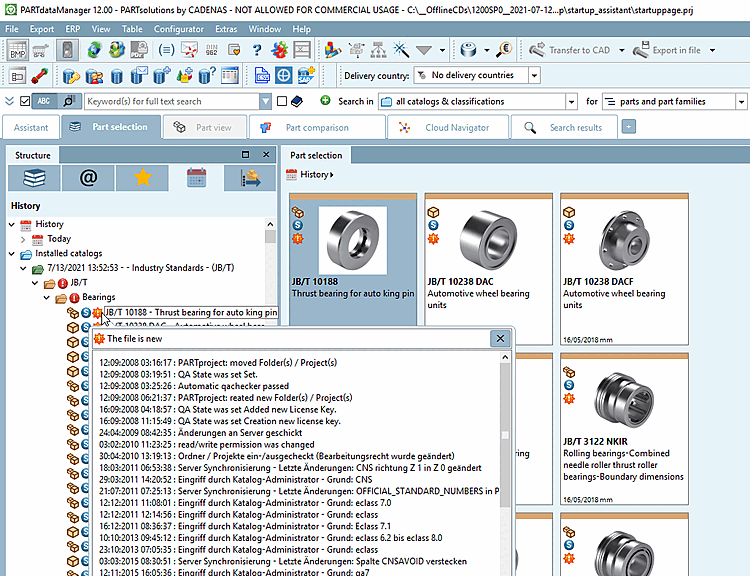

PARTdataManager -> "History [History] " tab page

PARTdataManager -> "History [History] " tab page

Save original files of current version

If you activate this option, the index management creates " backup files " of the latest catalog version. These can be recognized in the directory tree by the extension "original ". This is useful if you use eCATALOGsolutionsto make changes to the current parts, but want to keep the original version for security reasons.

Cleanup database entries

When you want to cleanup not only the project versions, but also the related entries in the Link database, then activate this option.
