3.4.7.2.2.  Insert 3D - Component placement

By default, the placement dialog is available. See Section 3.5.3, “Insert from the standard and purchased parts library via "PARTdataManager"”.

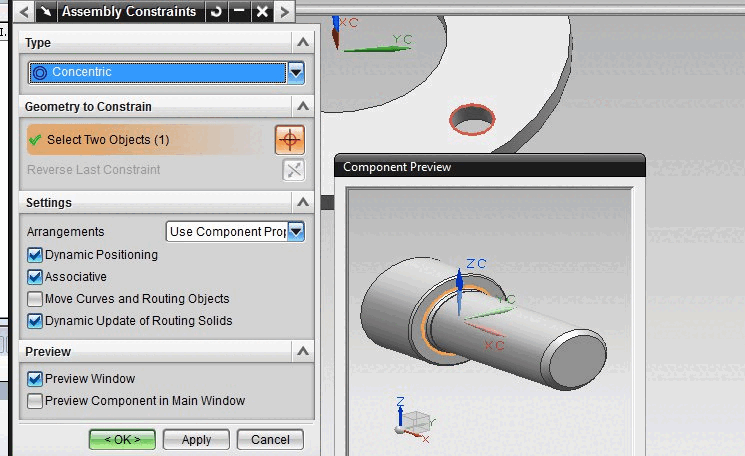

Assembly Constraints

Assembly Constraints

Insert the part with the NX placement method.

Screw inserted

Screw inserted
