5.10.2. 2D deriv ation: Extend standard views

5.10.2.4. Export into CAD system

If you want to export special derivations into the CAD system later, then proceed as follows:

Call PARTdataManager in the PARTsolutions Menu via Insert 2D (Insert model [Insert model] ).
Call up export function:

Note
The further procedure depends on the selected setting under Extras menu [Extras] -> Settings [Settings...]... -> Transfer to CAD [Export to CAD]. See "Transfer to CAD" tab page .
- Click on Transfer to CAD directly after selecting the desired component.
  -> The Select view to be transferred [Choose view to pass...] dialog box opens.... [Choose view to pass...]

  "Select view to be transferred [Choose view to pass...]..." dialog box

  Select the desired derivation and confirm with OK.
  -> The derivation is directly transferred to CAD.
- Click on the 2D derivation button.

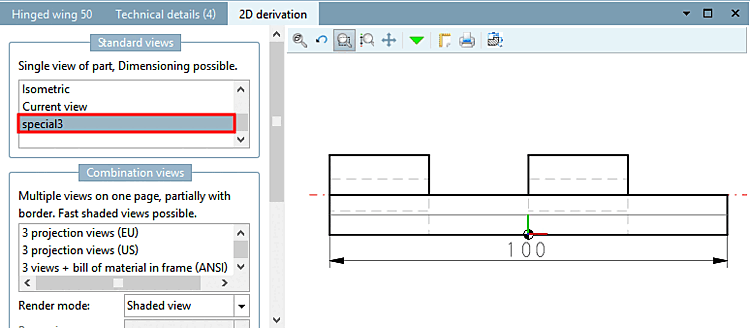

  -> The 2D derivation docking window opens.

  2D derivation

  Select the desired derivation.
  Click Transfer to CAD .

Result:

Result exemplarily in AutoCAD
