1.6.5.16.4.11.  Keys "TABCONTENT_..._ENABLED" and "TABCONTENT_..._HIDE_..." - Availability and visibility of tab content

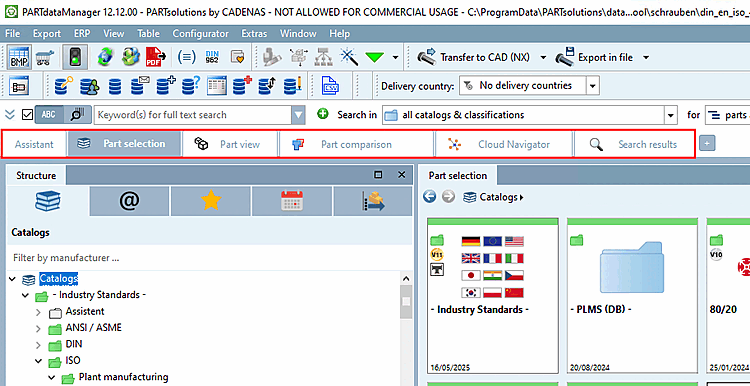

The keys starting with "TABCONTENT..." control the availability or visibility of tabs in PARTdataManager.

Availability of content sections:

  • Component comparison [Part comparison]: TABCONTENT_PARTCOMPARISON_ENABLED:

    • TRUE: available

    • FALSE: not available

  • Cloud Navigator: TABCONTENT_CLOUDNAVIGATOR_ENABLED:

    • TRUE: available

    • FALSE: not available

Visibility of available content sections after start-up:

  • Assistant: TABCONTENT_ASSISTANT_HIDE_ON_STARTUP

    [Note]Note

    In order for the assistant tab to be deactivated the script setup\scripts\partdatamanager\autoexec\startuppage.vbbhas to be deactivated in addition.

  • Part selection: TABCONTENT_PARTSELECTION_HIDE_ON_STARTUP

    • TRUE: not visible

    • FALSE: visible

  • Part view: TABCONTENT_PARTVIEW_HIDE_ON_STARTUP

    • TRUE: not visible

    • FALSE: visible

  • Component comparison [Part comparison]: TABCONTENT_PARTCOMPARISON_HIDE_ON_STARTUP

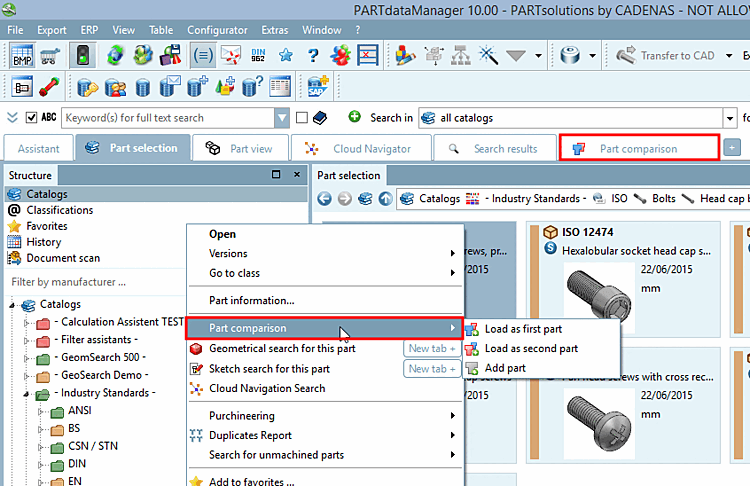

    Of course, when hiding the tab context menus are also hidden.

    Of course, when hiding the tab context menus are also hidden.

    • TRUE: not visible

    • FALSE: visible

  • Cloud Navigator: TABCONTENT_CLOUDNAVIGATOR_HIDE_ON_STARTUP

    • TRUE: not visible

    • FALSE: visible

  • Search result: TABCONTENT_SEARCHRESULT_HIDE_ON_STARTUP

    • TRUE: not visible

    • FALSE: visible
