2.8.1. Sketch 1 – “Raw“ cap nut

2.8.1.1. Create Sketch 1
2.8.1.2. Complete sketch 1
2.8.1.3. Base rotate

Start with the creation of the "raw" cap nut.

  1. Select the initial level XY in the 3D history [3D History] docking window.

    -> The selected level is displayed with a mesh structure underneath.

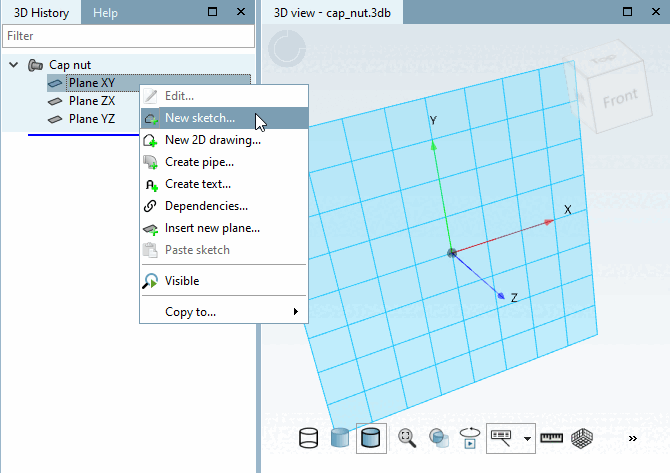

  2. Use the secondary mouse button to call up the context menu for tarpaulin XY.

  3. Click on the item New sketch.... [New sketch...]

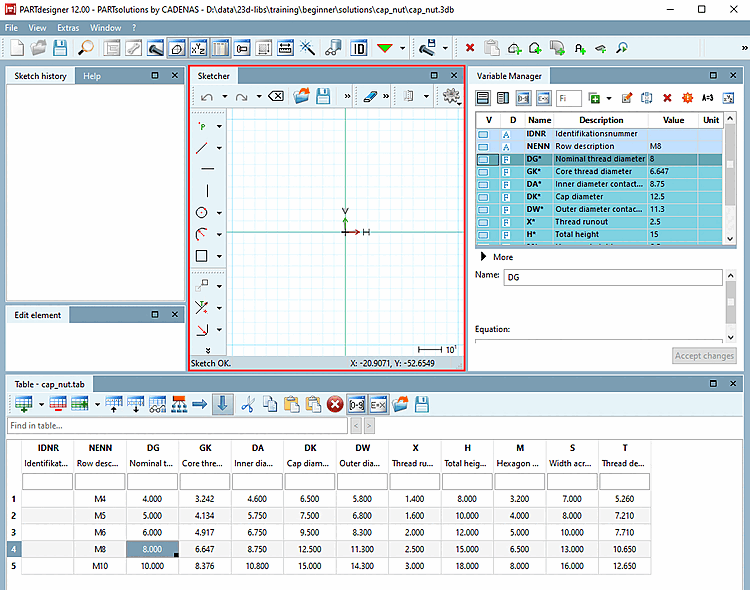

    -> The Sketcher opens.

In the next steps, the 2D sketch of the cap nut shall be created as shown below.

Sketch cap nut

Sketch cap nut

[Note]Note

When creating your drawing, use the notes in the footer of the PARTdesigner. There you can always find out about the status of the drawing or the next step.
