3.3.3.7.1. Most simple case (only PLM interface and CAD export)

The simplest case is the use directly after the minimum interface configuration (PLM interface and CAD export only).

  • You can export parts and during the CAD export a document info record (DIS) is created in SAP ECTR and the generated part is stored there.

  • In the LinkDB, there are not yet SAP columns created and no return mapping takes place, so that there is no control which documents are available.

  • Only standard "Additional tasks"

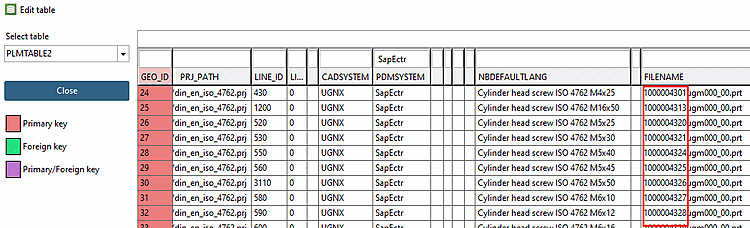

  • You can only identify exported parts that were created in SAP ECTR via the PLMTABLE2 using PRJ_PATH, NBDEFAULTLANG and FILENAME (document ID).
