1.7.3.2.1. Settings

1.7.3.2.1.2. Settings on project level

Have they been used for a specific project (standard or Purchase Part) settings, the Detached Part [Discontinued part] window appears when called up in 3Dfindit / PARTdataManager, in which one or more several parts are listed, which instead of the original selection (if this option is available in the configuration file replace_std.cfg has been activated).

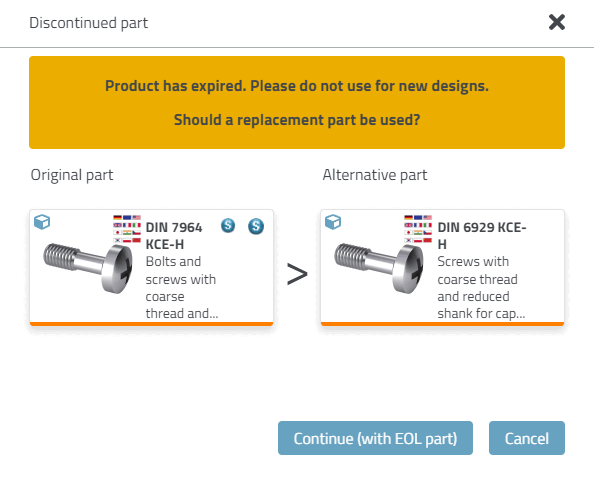

3Dfindit: "Detached part [Discontinued part]" dialog box

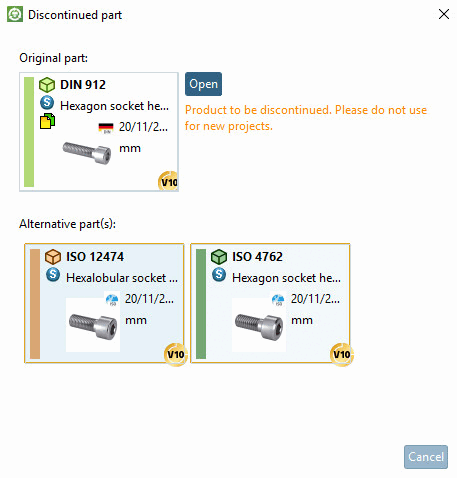

PARTdataManager: Dialog window "Detached part [Discontinued part]"

The following illustration shows the product selection in 3Dfindit.

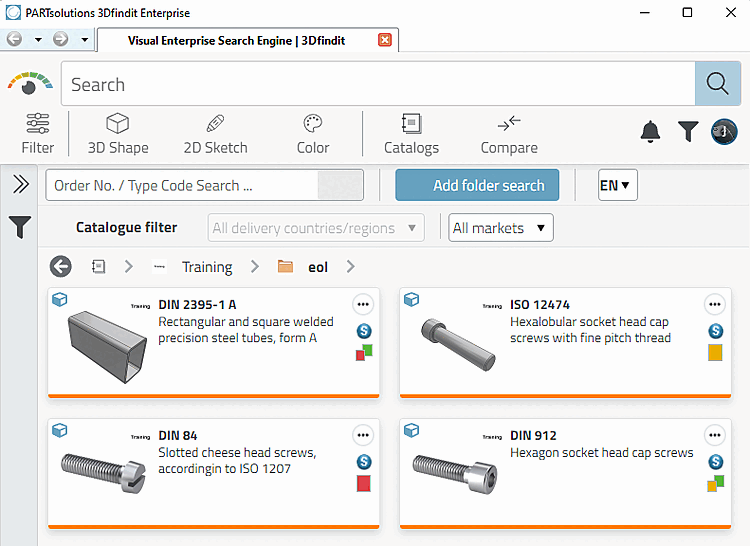

Example with different icons

Meaning of the icons

(The following table shows the icons from 3Dfindit. The appearance compared to PARTdataManager is only slightly different).

	Config entry: ALLOW_OLD=0: Old standard removed without replacement No entry under NEW1, 2, etc. Display in the dialog box: Product discontinued. Please do not use for new projects. No display of alternative parts
	Config entry: ALLOW_OLD=1: Old standard temporarily allowed No entry under NEW1, 2, etc. Display in dialog box: Product to be discontinued. Please do not use for new projects. No display of alternative parts
	Config entry: ALLOW_OLD=1: Old standard temporarily allowed Entry under NEW1, 2, etc. Display in dialog box: Product to be discontinued. Please do not use for new projects. Display of alternative parts
	Config entry: ALLOW_OLD=0: Old standard removed without replacement Entry under NEW1, 2, etc. Display in dialog box: Product discontinued. Please do not use for new projects. Display of alternative parts

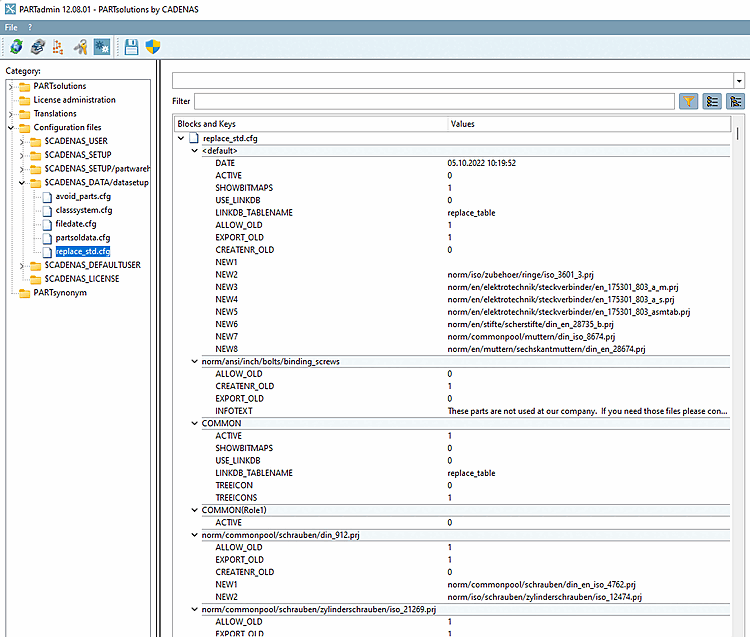

You can access the configuration file in PARTadmin under Category Configuration Files [Configuration files] → $CADENAS_DATA/datasetup → replace_std.cfg.

	Note
	PARTdataManager must be restarted if changes are made.

Blocks with project path

In the following blocks, you specify the expired standard and supplier parts.

Block name is the complete relative path from the catalog down to the project file.

Example:

[norm/din_en_iso/schrauben/zylinderschrauben/din_912.prj]

ALLOW_OLD = (value range 0 or 1)
If set to 1, the Open button is visible in 3Dfindit / PARTdataManager.

ALLOW_OLD = 1: Button "Open" button visible

If set to 0, the Open button is not visible in 3Dfindit / PARTdataManager.

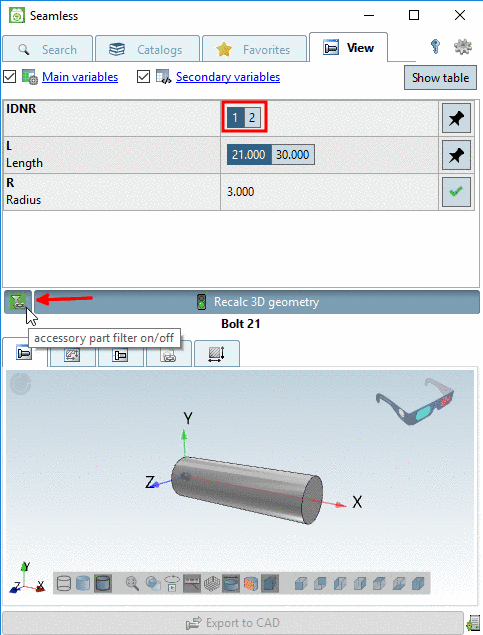

ALLOW_OLD = 0: Button "Open" is hidden
EXPORT_OLD = (value range 0 or 1)
- 0: When exporting a part the following message is displayed:
  This part has been marked as replaced and may no longer be exported by you. [This part has been marked as replaced and may not be exported by you anymore]

  PARTdataManager: Part may not be exported

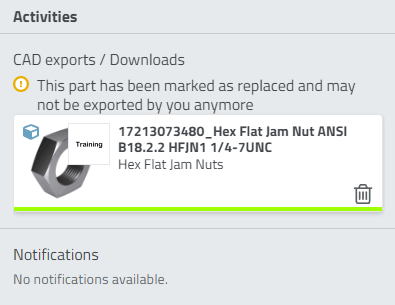

  3Dfindit: Part may not be exported
- 1: Part may be exported.
  A message is displayed.

CREATENR_OLD = (value range 0 or 1)

If set to 0, an error message is displayed when you click on the Add data record to link database [Add dataset to link database] an error message is displayed.

PARTdataManager: No data record may be created for this expired standard [Adding a dataset is not allowed for this expired norm.].

Note

To use this Function must be in erpcustom.cfg → Block [ADDTODB] the Script replace_mm.vbs must be enabled.

If the corresponding entry is missing, please create it yourself:

$CADENAS_SETUP/scripts/erp/replace_mm.vbb

NEW1 = norm/din_en_iso/screws/cylindrical screws/din_en_iso_4762.prj
NEW2 = norm/din_en_iso/screws/cylindrical screws/din_en_iso_1234.prj
Relative path to the new project (starting with catalog name).

Note
If no entry is made, the "Deleted without replacement [Replaced without substitution] " icon is displayed.

Specify all projects in this way.
