4.9.1.  Customize table values -> Customize text / plinkcommon.cfg -> Block [MAPPING_<COLUMN_NAME>] - Key for visible text

You can use the Customize text [Adjust text] option to determine which text is mapped to the internal values.

The setting applies equally to PARTdataManager/3Dfindit and PARTlinkManager.

The setting is made in the configuration file $CADENAS_SETUP/plinkcommon.cfg:

Block [MAPPING_<variable name>], key name is the displayed text, value is the internal value.

Example:

[MAPPING_ACTIVE_STATE]
Locked="0"
Released="1"
Expired="2"

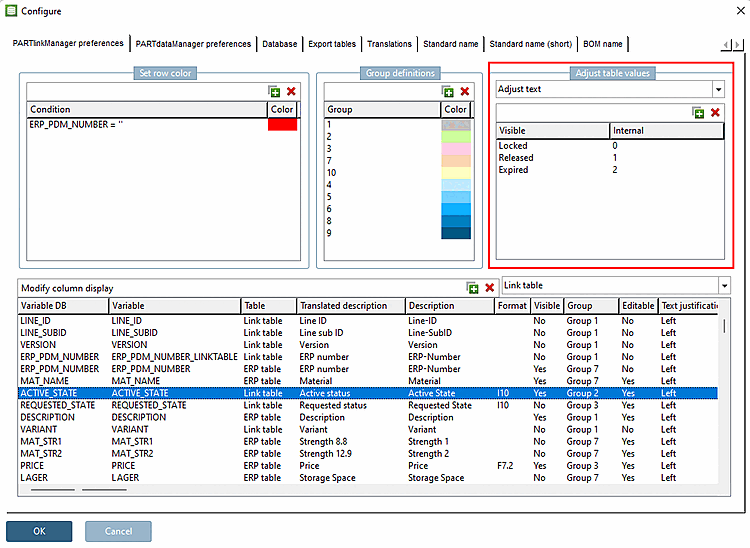

The setting via the user interface is made under PARTlinkManager -> Extras menu -> Configure dialog window -> PARTlinkManager settings [PARTlinkManager preferences] tab -> Adjust table values dialog area -> Adjust [Adjust text] list field selection text [Adjust text]:

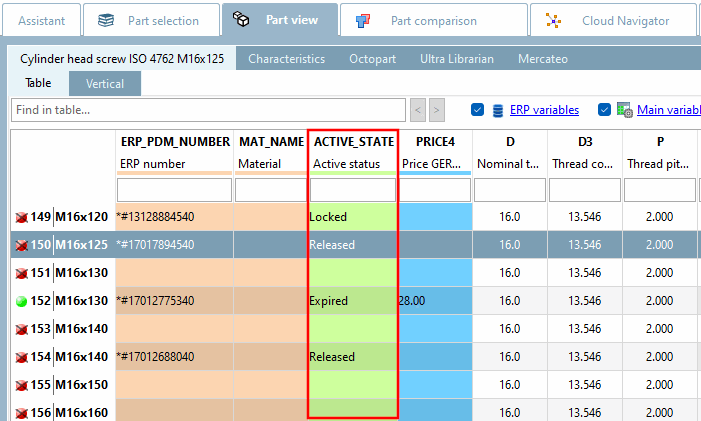

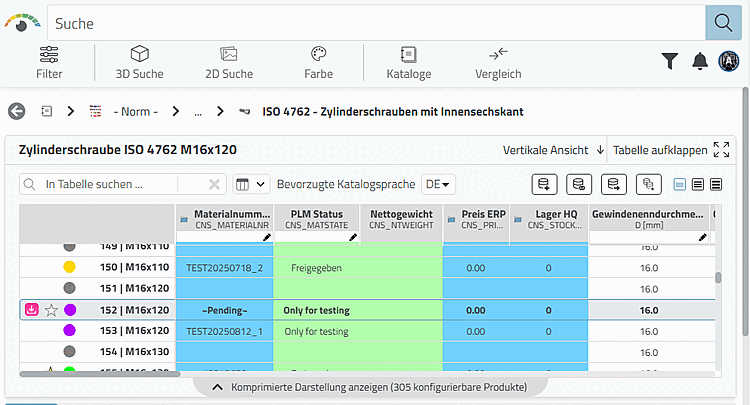

Display in PARTdataManager

Display in PARTlinkManager

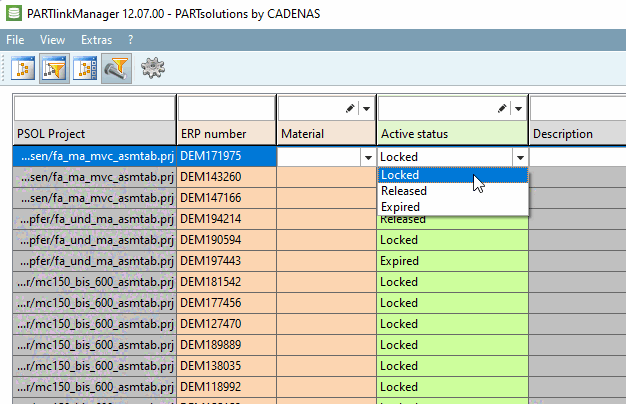

Values can be changed manually in PARTlinkManager -> Context menu on data set -> Set fields

Values can be changed manually in PARTlinkManager -> Context menu on data set -> Set fields
