2.6.14.3. Settings via PARTadmin

[Note]Note

Please restart PARTdataManager or 3Dfindit after making changes.

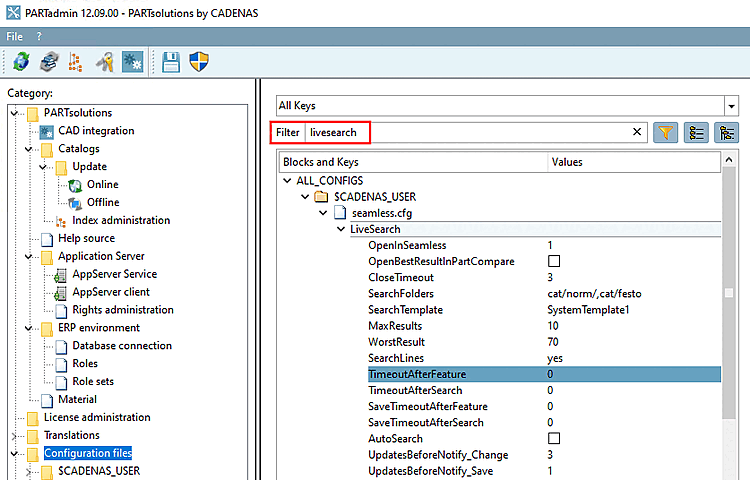

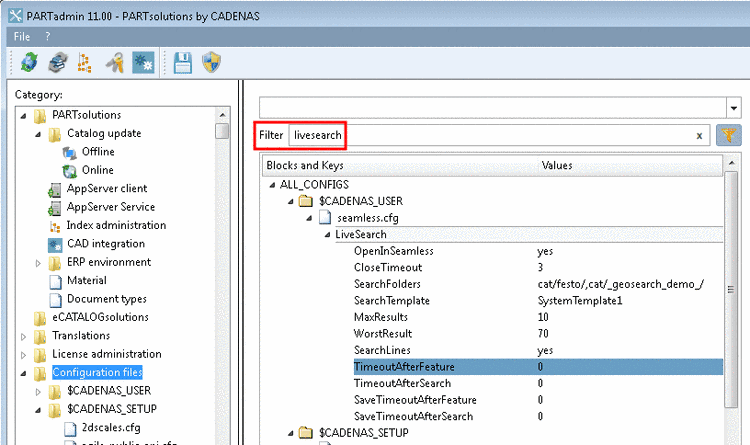

Make the settings in the configuration file under $CADENAS_USER/seamless.cfg:

  • Block LiveSearch.

    • OpenInSeamless:

      • yes: Part is opened in Seamless.

      • no: Part is opened in PARTdataManager.

    • CloseTimeout: Time in seconds after which the pop-up window is closed.

    • SearchFolders: Enter the desired search paths separated by commas.

      Example:

      SearchFolders=cat/norm/,cat/ownparts

    • SearchTemplate: Option to set the geo search templates for the live search. Leave the setting as default

      Example:

      SearchTemplate=SystemTemplate7

    • MaxResults: Maximum number of results

    • WorstResult: Geometric similarity of the worst result

    • SearchLines:

      • yes: Search for lines

      • no: Search for projects

    • Keys to control update frequency of results

      If no settings have been made, the display is updated after each changed feature. If you don't want this, configure timeouts.

      Default value is always 0, which equals a deactivation of key.

      Values > 0 will be evaluated. The difference between the two first and the two last keys is marginal. So preferably only use the two first keys.

      • TimeoutAfterFeature: Time until search restarts after feature change (sec.)

      • TimeoutAfterSearch: Minimum time that must elapse between two searches (sec.)

      • SaveTimeoutAfterFeature: Time between the end of the feature and the save process (PSOL-internal) (sec.)

      • SaveTimeoutAfterSearch: Minimum time that must elapse between saving (PSOL-internal) two searches (sec.)

  • Block SettingsIndexTree:

    • DefaultCellSize: Tile size

      Default: 120,120

  • $CADENAS_USER/psolopt.cfg -> Block [CadAssistant] -> Key StepFormat:

    If Update best result automatically in part comparison [Automatically update best result in part compare] is selected, the import dialog for STL 3D import is called up by default.

    If you want to import Step, set the key StepFormat to YES.
