1.3.5.1.  Templates

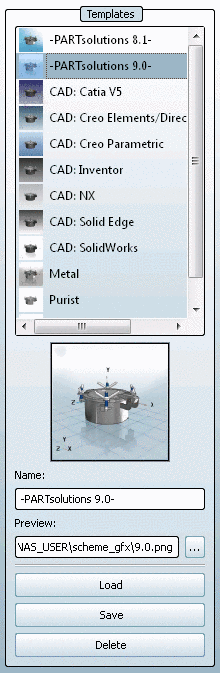

The Templates dialog area is described below.

  • Various templates are already configured and available for selection: 8.1, 9.0, CAD: Catia V5, etc.

  • The preview image of the selected template is displayed below the selections.

  • Select a desired template and click Load.

    Make changes and click Save.

  • To create your own template, proceed as follows:

    • Select an existing template that comes closest to your ideas.

    • Configure the template on all Tabbed pages.

    • Enter the desired name [Name] under Name.

    • Use Browse ... to load the desired preview image.

    • Click Save.

  • Use Delete to remove templates.

    [Note]Note

    If you delete templates, they cannot be reactivated!
