Chapter 5. PARTproject

5.2. Function

In PARTproject all information required for the display and selection of components and assemblies in PARTdataManager are required.

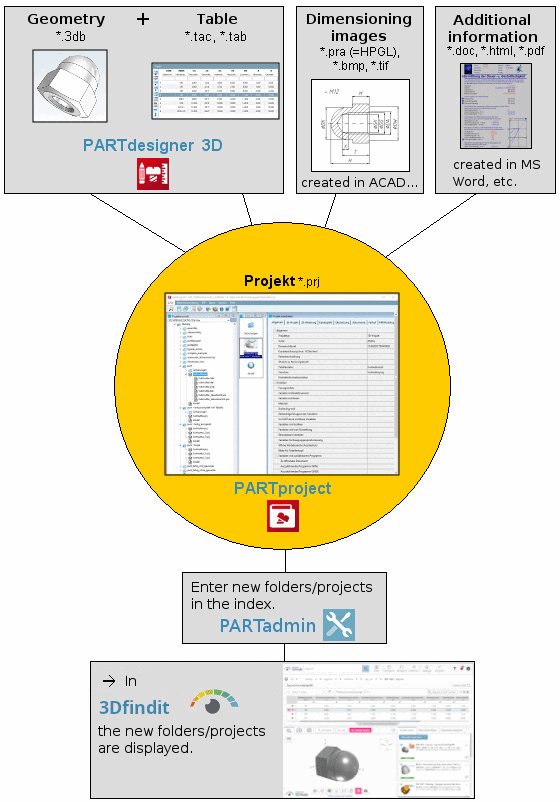

Geometry, attribute table, dimensioning images and additional information together compose a project with project file *.prj.

Below the *.prj file (this will be opened later in the PARTdataManager ) are the individual files that make up the project.

*.3db (3gb) - Geometry (see Section 5.2.1, “Call from PARTdesigner ”)
*.tab / tac - Characteristic attribute table (see Section 5.2.1, “Call from PARTdesigner ”)
*.pra, *.png, (*.bmp) - Preview images (see Section 5.11.2, “ Create and import/convert dimensioning views externally ”)
*.pdf, *doc, etc. - Additional information
*.def - Translations (see Section 5.8.2.1.14, “ Translation ”)
*.dim - Dimensionings (see Section 7.16, “ Docking window "Dimensions " ”)

"Project selection [Project selection] " dialog area
