7.9.3.15.1.  Text

[Note]Note

Only available in drawing mode [Drawing].

  • Insert text

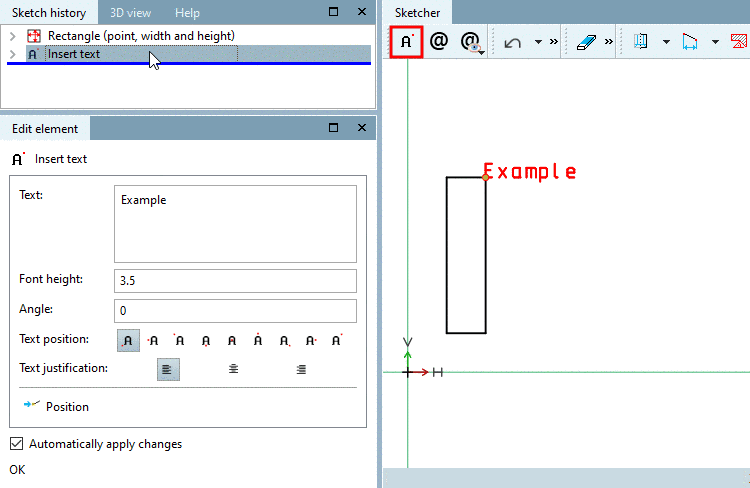

    1. Click on the button and move the mouse cursor over the desired insertion point.

      -> The snap is shown at the selected position.

      With a mouse click the function is executed.

      -> The individual setting parameters are displayed in the Edit element window.

    2. Enter the desired text under Text and define the appearance using the following setting options:

      • Font height

      • Angle

      • Text position

        The red point at the "A" shows the relation to the text.

      • Text alignment [Text justification]: left, center, right

      • Position X

      • Position Y

    Insert text

    Insert text

Insert BMG layer

[Note]Note

A current CNS classification is required. The feature was officially made available with V11 SP6.

An example on this can be found under Section 5.10.2.6, “BMG Layer (DIN4003) ”.

  • Classify element

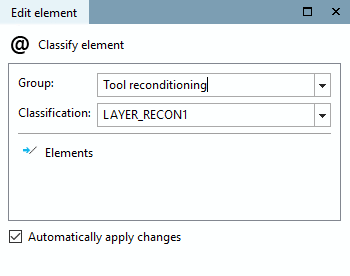

    1. Click on the element to be classified and then on the button.

      -> The individual setting parameters are displayed in the Edit element window.

    2. Select the desired option under Group and Classification.

  • Hide classified elements

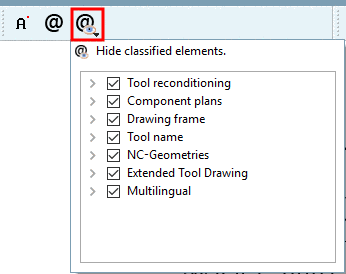

    1. Click on the button.

      -> The Hide classified elements dialog area is opened.

    2. Enable/disable the checkbox at the desired groups.
